Sanhua SBV(M)-JA29YHSY-1-SA Ball Valve & Service Port – 3 5/8" ODF (92 mm) | Full Port | Kv 805 m³/h

Designed for flow shut-off in large-diameter commercial and industrial refrigeration / air conditioning lines, this is the Sanhua SBV(M)-JA29YHSY-1-SA full port ball valve (Sanhua code: 10150056902). It has 3 5/8 inch (92 mm) ODF copper solder connections, is bidirectional and has a low pressure drop. Thanks to the integrated service port (Schrader / access fitting), evacuation, refrigerant charging and pressure measurement can be carried out directly through the valve.

3 5/8 inch Full Port Ball Valve with Service Port

Sanhua SBV series ball valves offer high reliability and minimal pressure drop with their welded body-seat construction, full port design and quick 1/4-turn open/close operation. They can be installed in any orientation in liquid, suction and discharge lines and are compatible with R134a, R404A, R407A/C/F, R410A and all common HCFC/HFC/HFO refrigerants.

Key Features

• Full port: Minimum pressure drop, high flow (Kv 805 m³/h)
• Integrated service port (Schrader / access fitting) — easy evacuation, charging and measurement
• Bidirectional flow; quick 1/4-turn open/close; welded body-seat (high strength)
• Wide refrigerant compatibility: R134a, R404A, R407A/C/F, R410A and common HCFC/HFC/HFO
• Wide operating range -40°C / +120°C; UL/CSA and PED declaration

Technical Specifications

• Brand / Model: Sanhua / SBV(M)-JA29YHSY-1-SA (Sanhua code: 10150056902)
• Type: Ball valve, full port, bidirectional, 1/4 turn
• Connection: 3 5/8 inch (92 mm) ODF copper solder — both ends
• Flow Coefficient (Kv): 805 m³/h
• Service Port: Yes (Schrader / access fitting) — evacuation, charging, pressure measurement
• Max. Working Pressure (PS): 4.5 MPa (45 bar)
• Temperature Range (TS): -40°C / +120°C
• Compatible Refrigerants: R134a, R404A, R407A, R407C, R407F, R410A and all common HCFC/HFC/HFO
• Body: Brass / steel, welded body-seat construction
• Wrench Size: 24 mm (SK04 service wrench)

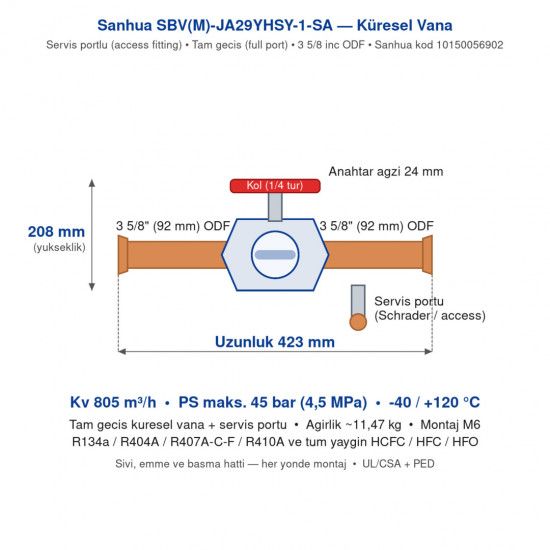

• Dimensions: Length 423 mm, body diameter ~80 mm, height ~75 mm; mounting M6 x 1.0
• Weight: ~11.47 kg
• Mounting Orientation: Liquid, suction and discharge line — any orientation
• Approvals: UL/CSA, PED declaration

Technician Tips

• Braze the large 3 5/8 inch connections under nitrogen; protect the valve body with a wet cloth or heat-absorbing paste during brazing (excessive heat damages the seat seal).
• Braze the valve held in the position specified in the manufacturer's instructions; direct the flame away from the body to prevent overheating.
• Use the service port for evacuation / charging / measurement; after the work, tighten the Schrader cap leak-tight.
• Operate fully open or fully closed with a 1/4 turn; leaving it partially open for long periods causes wear on the ball and seal.
