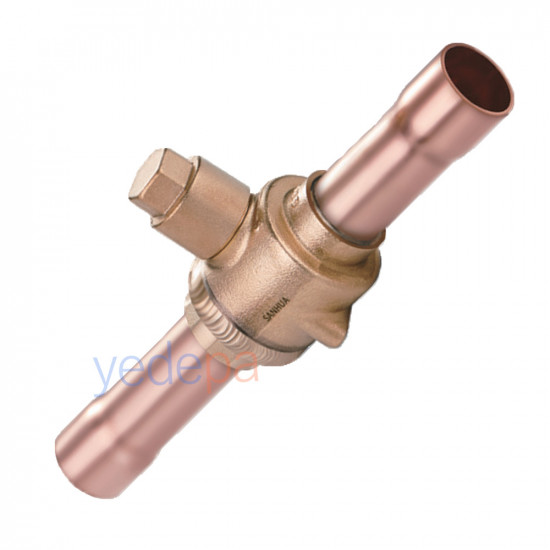

Sanhua SBV(M)-A21YHSY-2-SA Ball Valve – 2 5/8" ODF, 305 m³/h Flow, Straight Type, Bi-Flow

Product Description

The Sanhua SBV(M)-A21YHSY-2-SA straight-type ball valve is designed for use in high-capacity refrigeration and air conditioning systems. With its 2 5/8 inch ODF solder connection, this model stands out for its high flow performance and reliable shut-off capability. Having no access port, this valve increases system efficiency with its low pressure loss and long-life design.

Technical Specifications

• Model: SBV(M)-A21YHSY-2-SA
• Part Number: 10150056302
• Connection Type: ODF (Solder)
• Connection Size: 2 5/8"
• Flow (Kv): 305 m³/h
• Wrench Size (Cap): 19 mm
• PED Category: I
• Access Port: No

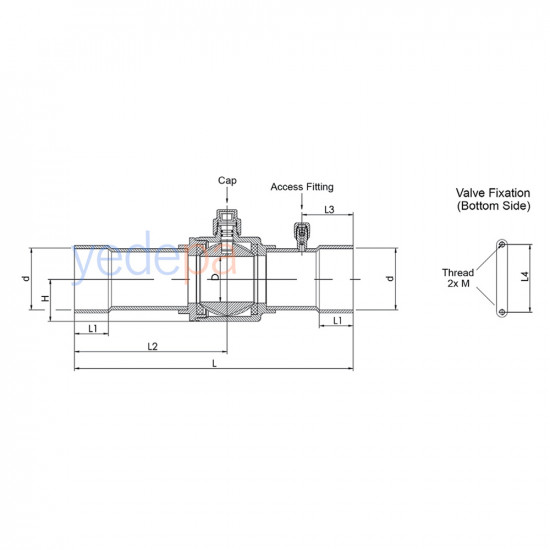

Dimensions

• Overall Length (L): 305 mm
• L1: 37 mm
• L2: 167 mm
• L3: 56 mm
• L4: 74 mm
• Diameter (D): 60 mm
• Height (H): 56 mm
• Mounting Thread (M): M6 x 1.0
• Weight: 6.08 kg

Applications

Suitable for use in large commercial refrigeration systems, HVAC units and industrial refrigeration applications. Because it has no access port, it is preferred in continuous-flow systems that do not require maintenance access.
