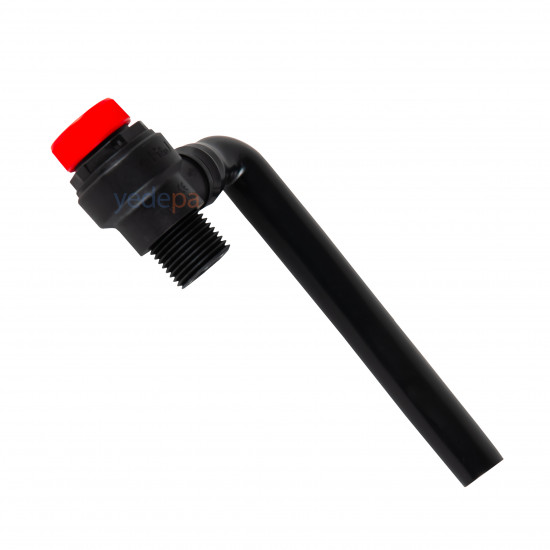

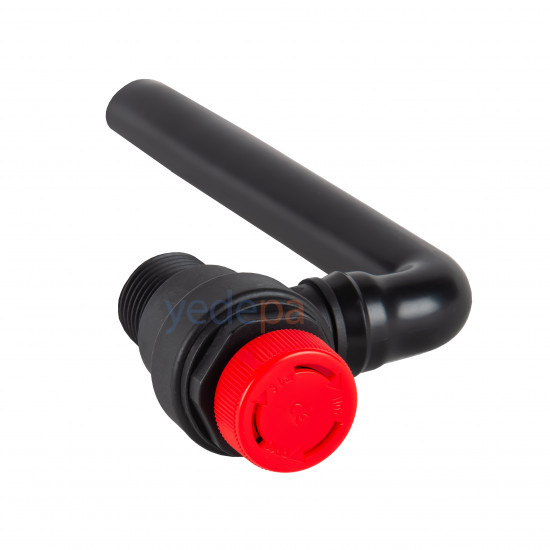

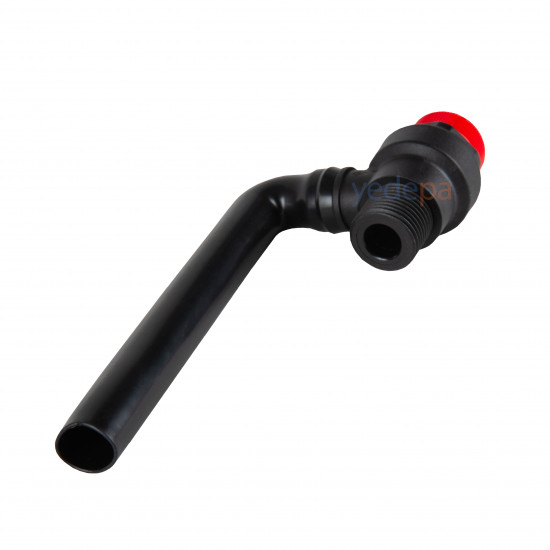

Safety Relief Valve with Drain Pipe 3 Bar 1/2" Male Thread Plastic – Ariston Compatible

The safety relief valve with drain pipe is an important safety part used to safely discharge excess pressure in combi boilers and hot water systems. With a 3 bar working pressure, this model is compatible with Ariston EGIS, Class and Genus series combi boilers thanks to its 1/2" male thread connection and plastic body.

Technical Specifications

• Product Type: Safety relief valve with drain pipe / water safety valve
• Working Pressure: 3 Bar
• Connection Size: 1/2" male thread (Male)
• Outlet Type: Piped drain outlet
• Material: High-strength plastic body
• Quick Connection: Compatible with 3/8" connection

Compatible Combi Boiler Models

• Ariston EGIS
• Ariston Class
• Ariston Genus

Product Codes / References

• Quick Connection: 3/8"
• SPL/E30
• 3/8" EL1

Applications

• Combi boiler domestic hot water (DHW) systems
• Sealed heating systems
• Combi boiler maintenance and repair

Product Advantages

This 3 bar safety relief valve protects the combi boiler and installation by discharging excess water when system pressure rises above the safe level. Its 1/2" male thread connection makes installation easy. Its plastic body is corrosion-resistant and offers a long service life.

Installation Information

System pressure must be fully relieved during installation. The safety relief valve must be fitted in accordance with the manufacturer's instructions using sealing elements. Installation by qualified persons is recommended.

Frequently Asked Questions

What does a safety relief valve with drain pipe do?

The safety relief valve with drain pipe protects the combi boiler and installation by discharging excess water when pressure in combi boilers and hot water systems rises above the safe level. This model has a 3 bar working pressure and is used with a piped drain outlet.

Which Ariston combi boiler models is this 3 bar safety relief valve compatible with?

It is compatible with Ariston EGIS, Class and Genus series combi boilers.

What are the connection sizes and reference codes of this safety relief valve?

Its connection is 1/2" male thread and it is compatible with 3/8" quick connection; its body is plastic. Its reference codes are SPL/E30 and 3/8" EL1.

What should be considered when installing the safety relief valve?

System pressure must be fully relieved before installation. The valve must be fitted in accordance with the manufacturer's instructions using sealing elements, and installation by qualified persons is recommended.
