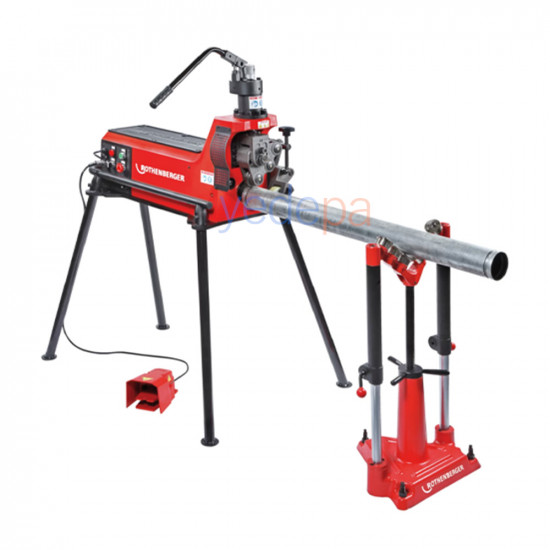

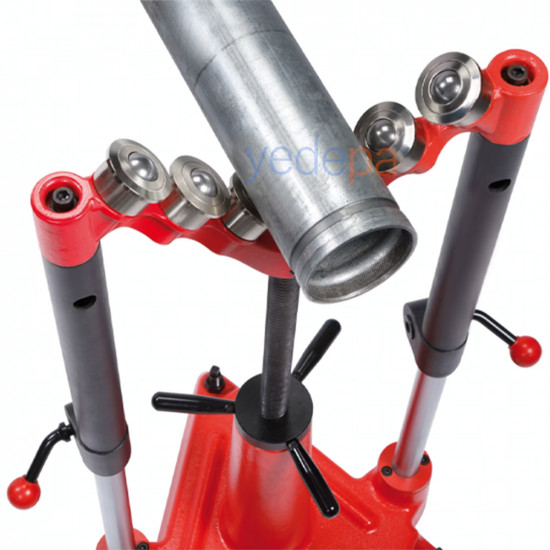

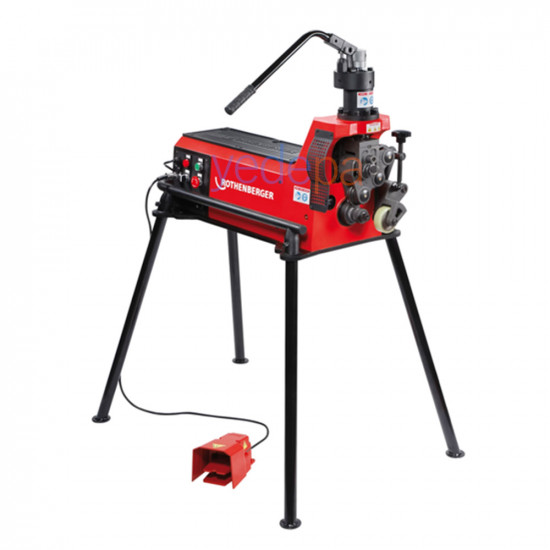

Rothenberger Rogrover 1-12" Roll Grooving Machine 230 volt 50 Hz

The Rothenberger Rogrover 1-12" Roll Grooving Machine is a stationary, electro-hydraulic solution for fast and easy grooving of steel pipes. It is ideal for pipes in the 33-324 mm diameter range and wall thicknesses up to 10 mm.

Features

• Ready-to-use groover, all necessary rollers included.
• 1-1.1/2", 2-6" and 8-12" pressure roller working ranges, adjustable without tools.
• Operating safety is ensured by the foot pedal, emergency stop button and work area lighting.
• Thanks to the powerful 1500 watt motor, trouble-free processing of 12" steel pipes with 10 mm wall thickness.

Technical Details

• Voltage: 230 V
• Working Range Diameter: 33 - 325 mm
• Plug Type: Plug type F (CEE 7/4)
• Pipe Wall Thickness: 3 - 10 mm
• Hydraulic Cylinder Pressure: 40 bar
• Power: 1,500 W
• Tank Volume: 150 ml

Packaging and Shipping

• Net Weight: 175.000 kg
• Gross Weight: 227.000 kg
• Packaging Dimensions (Length x Width x Height): 90.000 cm x 63.000 cm x 138.000 cm

Ideal for Professional Operations

The Rothenberger Rogrover 1-12" Roll Grooving Machine offers a powerful and reliable solution for demanding professional applications.
