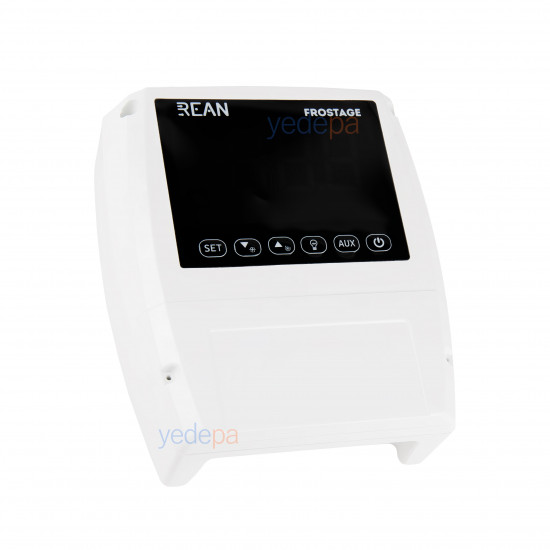

Rean RCR305-230 Dual Sensor Panel-Mount Cold Room Digital Thermostat (NTC Sensor Included)

The Rean RCR305-230 panel-mount cold room digital thermostat is developed to precisely monitor and control temperature and operating conditions in cold rooms and industrial refrigeration systems. Thanks to NTC sensor support, it tracks room and evaporator temperatures separately.

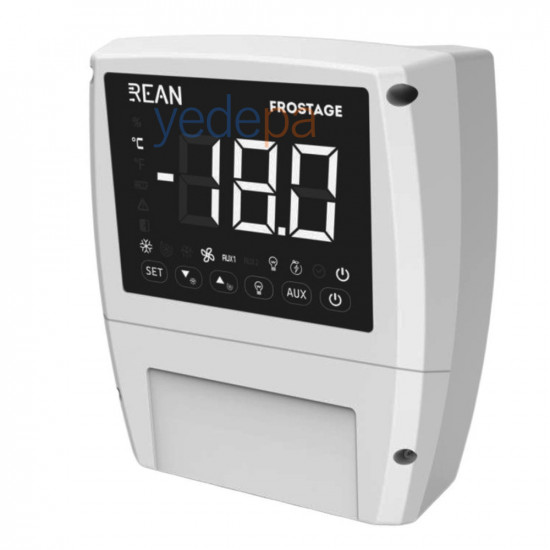

With the 3 NTC sensor inputs on the device, room temperature, evaporator temperature and an optional third sensor can be used. Thanks to its wide LED display and status indicators, the current operating status can be easily monitored.

5 relay outputs allow cooling, defrost, fan, lighting and auxiliary (AUX) control functions to be managed from a single device. The lighting and AUX outputs can also be controlled manually with the keypad on the device.

Compressor protection parameters, sensor calibration values and temperature setpoint limits are user adjustable. It provides precise control with a 0.1°C temperature reading resolution.

Product Features

• Product Type: Cold Room Digital Thermostat
• Model: RCR305-230
• Mounting Type: Panel-Mount
• Sensor Type: NTC (sensor included)
• Sensor Inputs: 3 (Room, Evaporator, Optional)
• Temperature Reading Resolution: 0.1 °C
• Functions: Cooling, Defrost, Fan, Lighting, AUX
• Fast Cooling Function
• Energy Saving Mode

Electrical Specifications

• Supply Voltage: 230V AC / 50-60 Hz
• Compressor Relay: 250V AC, 30A (NO)
• Defrost Relay: 250V AC, 16A (NO + NC)
• Fan Relay: 250V AC, 16A (NO + NC)
• Lighting Relay: 250V AC, 8A (NO + NC)
• AUX Relay: 250V AC, 8A (NO + NC)

Input and Safety Features

• 2 digital inputs (user defined)
• Time-based safe operating mode on sensor failure
• Adjustable compressor protection parameters
• Adjustable sensor calibration values

Mounting and Certification

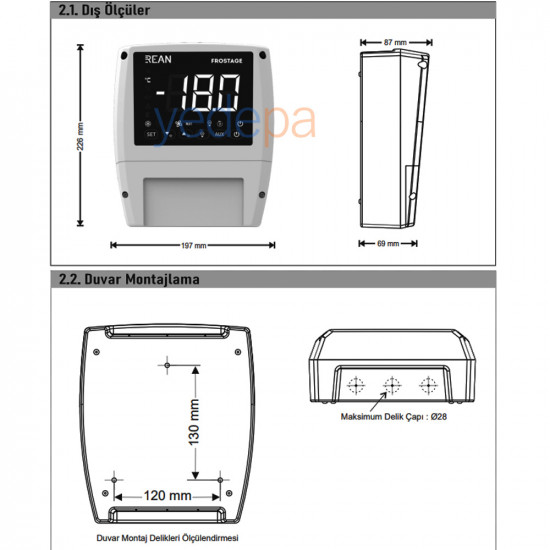

• Wall-mounted design

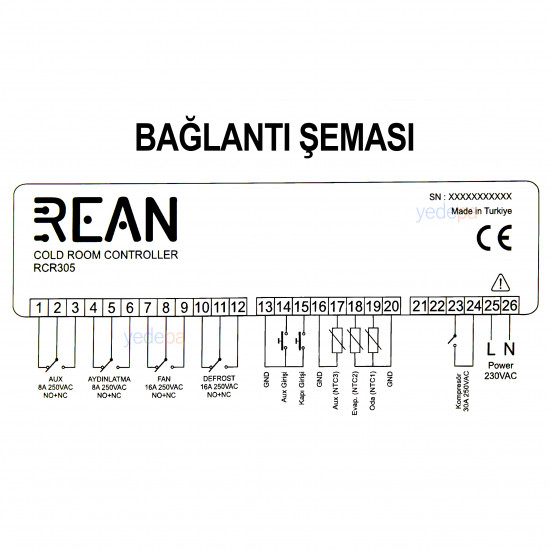

• Easy installation with terminal block connections
• Protection Class: IP65
• Standards: EN
• Certificate: CE

Installation and Safe Use

Installation and electrical connections of the device must be carried out by technical personnel experienced in refrigeration systems. Setting the parameters to suit the application is important for system performance and energy efficiency.
