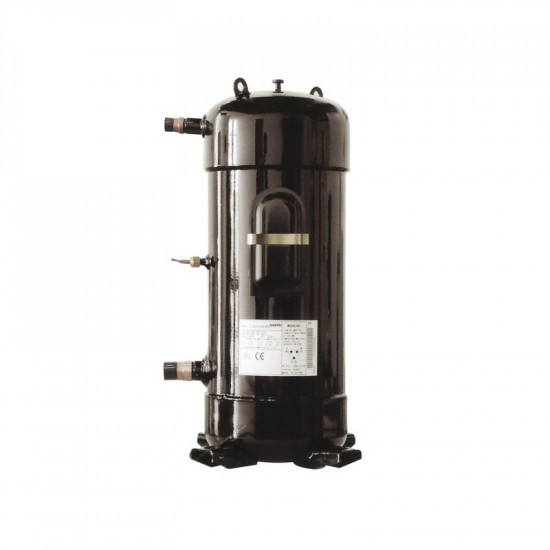

Panasonic CSCP 510 H38B 15 HP Compressor Without Valves

The Panasonic C-SCP510H38B is a 15 HP scroll type compressor. It runs on R410A refrigerant, is suitable for HBP (High Back Pressure) application and operates on a 380-440V / 50-60Hz electrical supply. It is used in high-capacity cooling areas such as large commercial buildings, shopping centers, industrial facilities and cold storage warehouses.

Panasonic Scroll Compressor C-Scp510H38B 15Hp

General Features:

• Compressor Power: 15 HP
• Refrigerant Type: R410A
• Application Type: HBP (High Back Pressure) +7.2℃ / +54.4℃.
• Electrical Supply: 380-440V, 50-60Hz.

Product Description:

The Panasonic Scroll Compressor C-Scp510H38B is a scroll compressor model with a 15 HP power capacity. Using R410A refrigerant, it offers high energy efficiency and environmentally friendly operation. This model is preferred particularly in areas such as large commercial buildings, shopping centers, industrial facilities and cold storage warehouses.

Applications:

The 15 HP Panasonic Scroll Compressor is ideal for large-scale commercial and industrial refrigeration projects. It stands out with its high cooling capacity and energy efficiency. In addition, thanks to the use of R410A refrigerant, it minimizes its environmental impact and offers sustainable operation.

Frequently Asked Questions

What is the power of the Panasonic C-SCP510H38B compressor and which refrigerant does it use?

This model has a 15 HP power capacity and runs on R410A refrigerant. It is used in commercial and industrial systems requiring high cooling capacity.

Which electrical supply does the C-SCP510H38B operate on?

It operates on a 380-440V, 50-60Hz electrical supply. Before installation, make sure that the facility's supply values are compatible with this range.

Which application type is this compressor suitable for?

It is suitable for HBP (High Back Pressure) application; the operating temperature range is specified as +7.2℃ / +54.4℃. It is preferred for large-scale commercial and industrial refrigeration projects.

What type of compressor is the C-SCP510H38B and where is it preferred?

It is a scroll type compressor. It is preferred in high-capacity cooling areas such as large commercial buildings, shopping centers, industrial facilities and cold storage warehouses.

Can I buy regularly with an invoice as a service company/technician?

Yes, all our sales are invoiced. All orders, including those from service companies and technicians, are placed directly through our website.

How do I track my shipment after ordering?

Your shipment tracking number is sent to your e-mail and phone after ordering; you can follow its status in the “Where Is My Shipment?” section.

Can I return or exchange the product?

Yes. Under Consumer Protection Law No. 6502 you have the right of withdrawal/return within 14 days of delivery. To avoid ordering the wrong model, we recommend that you verify compatibility before ordering. Details are on our “Delivery, Returns and Exchanges” page.

What payment and instalment options are available?

You can pay by debit/credit card and Tosla, and take advantage of instalment/credit options through Fibabanka and Akbank. Current options are listed on our “Payment Options” page.

Where is Yedepa located and how is delivery made?

Yedepa is an e-commerce site; orders are placed through yedepa.com and shipped to your address by courier from our warehouses across Turkey and from our contracted suppliers. Our head office is at Cennet Mah. 2. Yavuz Selim Cad. No:68/A, Küçükçekmece / İstanbul.

Manufacturer Technical Data

• Cooling Capacity: 43,888 W = 149,700 BTU/h
• Power Input: 13,641 W — COP: 3.22
• Rated Current: 23.90 A — MCC: 39 A
• Displacement: 171.2 cm³/rev
• Oil Charge: 3.50 L
• Net Weight: 76.2 kg
• Noise Level: 71 dB
• Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R410A

Values are taken from the manufacturer's technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
