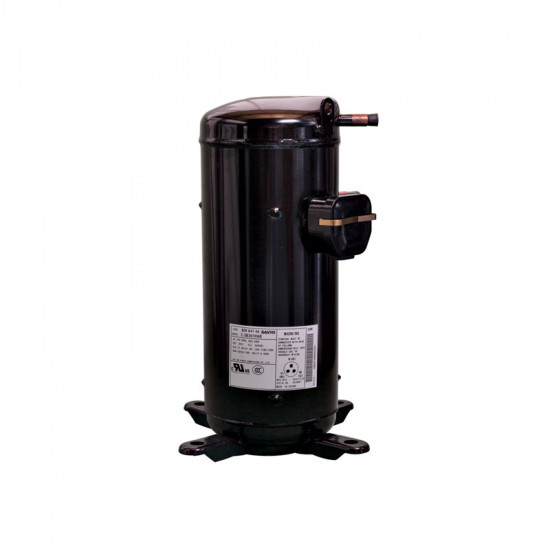

Panasonic CSBS 235 H38B 7 HP Compressor Without Valves

Panasonic Scroll Compressor C-Sbs235H38A 7Hp

General Features:

• Compressor Power: 7 HP
• Refrigerant Type: R134A, R404A, R407C
• Application Type: HBP (High Back Pressure) +7.2℃ / +54.4℃ and MBP (Medium Back Pressure) -10℃ / +45℃.
• Electrical Supply: 380-440V, 50-60Hz.

Product Description:

The Panasonic Scroll Compressor C-Sbs235H38A is a 7 HP model compatible with various refrigerants such as R134A, R404A and R407C. Designed for HBP and MBP applications, this compressor offers high performance and energy efficiency in commercial and industrial refrigeration systems. This model has the capacity to meet particularly large-scale refrigeration requirements.

Applications:

Offering a wide range of applications, the 7 HP Panasonic C-Sbs235H38A can be used effectively in large supermarkets, restaurant chains, cold storage warehouses and other industrial refrigeration systems. The wide voltage range of this compressor also makes it a preferred choice in international markets.

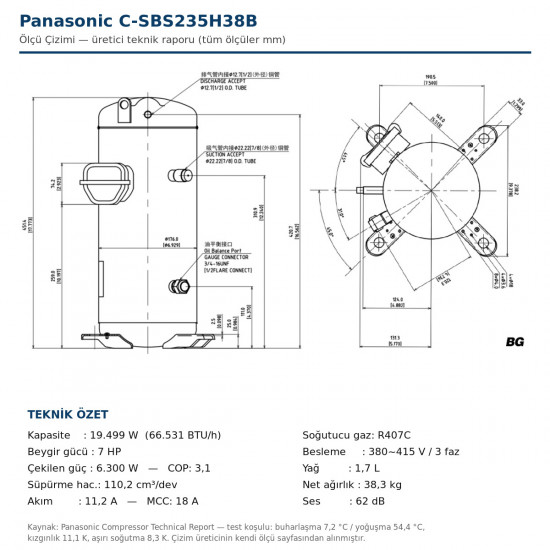

Manufacturer Technical Data

• Cooling Capacity: 19,499 W = 66,500 BTU/h
• Power Input: 6,300 W — COP: 3.10
• Rated Current: 11.20 A — MCC: 18 A
• Displacement: 110.2 cm³/rev
• Oil Charge: 1.70 L
• Net Weight: 38.3 kg
• Noise Level: 62 dB
• Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R407C

Values are taken from the manufacturer's technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
