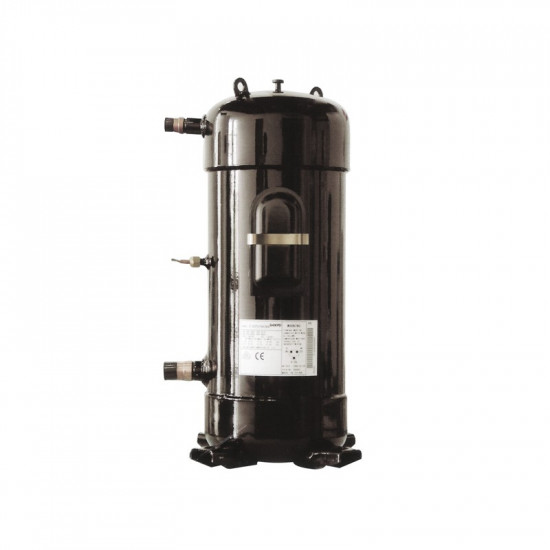

Panasonic C-SCP400H38B Scroll Compressor without Valves – 12 HP / 111,900 BTU, R410A

Panasonic Scroll Compressor C-Scp400H38B 12Hp

General Specifications:

• Compressor Power: 12 HP
• Refrigerant: R410A
• Application Type: HBP (High Back Pressure) +7.2℃ / +54.4℃.
• Power Supply: 380-440V, 50-60Hz

Product Description:

The Panasonic Scroll Compressor C-Scp400H38B is a 12 HP scroll compressor model operating with R410A refrigerant. It stands out for its high energy efficiency and robust performance and is generally used in large-scale commercial and industrial refrigeration systems.

Applications:

This 12 HP Panasonic Scroll Compressor is preferred in places such as large commercial buildings, industrial facilities, cold storage warehouses and shopping malls. It is designed to meet high-capacity cooling requirements.

Manufacturer Technical Data

• Cooling Capacity: 32,805 W = 111,900 BTU/h
• Power Input: 10,899 W — COP: 3.01
• Rated Current: 18.30 A — MCC: 29 A
• Displacement: 131.9 cm³/rev
• Oil Charge: 2.80 L
• Net Weight: 68.5 kg
• Sound Level: 69 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R410A

Values are taken from the manufacturer's technical report; test conditions: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
