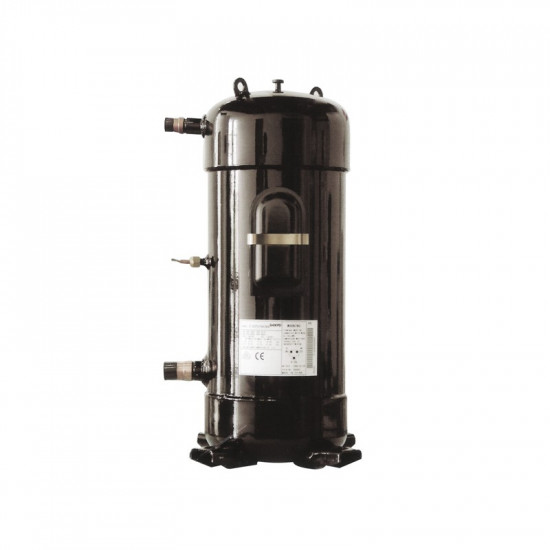

Panasonic C-SCN753H8K Scroll Compressor | 10 HP | 102,000 BTU/h (29,900 W) Cooling Capacity | R22 / R407C / R404A / R134a | Three-Phase 380V | Valveless

Designed for air conditioning systems, air handling units (AHU), rooftop units, chillers and commercial refrigeration applications, the Panasonic C-SCN753H8K is a valveless hermetic scroll compressor (old catalog spelling: CSCN 753 H8K). With 171.2 cm³ displacement and 10 HP nominal power, it delivers approximately 102,000 BTU/h (29,900 W) cooling capacity with R407C at 7.2°C / 54.4°C; with R404A at -10°C / +45°C it delivers 18,850 W. Designed for R22, it also works with R407C, R404A and R134a; the low-GWP alternatives R448A, R449A and R513A are approved.

Nominal Capacity: 10 HP (10 horsepower) / 102,000 BTU/h (8.5 TR, ≈29.9 kW)

10 HP Hermetic Scroll Compressor for Air Conditioning and Commercial Refrigeration (R22)

Panasonic scroll compressors provide highly efficient, quiet and reliable operation with few moving parts, low vibration and a 74 dB sound level. Thanks to its vertical design and compact housing (553 mm height, 220 mm diameter), it is suitable for tight machine rooms and tandem applications. The three-phase induction motor is equipped with internal motor protection; with a COP of 3.2 it reduces operating costs.

Key Features

• Scroll technology — few parts, low vibration, high efficiency (COP 3.2)
• 10 HP nominal, three-phase (380V / 3~ / 50Hz) power supply
• 102,000 BTU/h (29,900 W) cooling capacity (R407C, 7.2°C / 54.4°C)
• Wide refrigerant compatibility: R22, R407C, R404A, R134a + low-GWP R448A / R449A / R513A
• Internal motor protection; vertical design suitable for tandem applications; CE and UL approved
• Valveless (braze/solder connection) — a version with suction and discharge valves is also available

Technical Specifications

• Brand / Model: Panasonic / C-SCN753H8K (CSCN 753 H8K)
• Type: Hermetic scroll compressor, vertical, fixed speed
• Application: Air conditioning and commercial refrigeration (HVAC&R)
• Nominal Power: 10 HP (10 horsepower)
• Power Supply: Three-phase — 380V / 3~ / 50Hz
• Cooling Capacity: 102,000 BTU/h (29,900 W) — R407C, 7.2°C / 54.4°C; R404A (-10°C / +45°C): 18,850 W
• COP (Coefficient of Performance): 3.2
• Displacement: 171.2 cm³/rev (29.79 m³/h @ 50Hz)
• Compatible Refrigerants: R22 (primary), R407C, R404A, R134a; approved low-GWP: R448A, R449A, R513A
• Oil: FV68S — 2,800 ml
• Motor: Three-phase induction, internal motor protection
• Sound Level: 74 dB
• Dimensions: Height 553 mm, diameter 220 mm
• Connections: Suction 25 mm, discharge 19 mm — valveless (solder)
• Maximum Discharge Temperature: 130°C
• Certifications: CE, UL

Technician Tips

• On the valveless model, braze the connections under nitrogen to prevent internal oxidation.
• On the three-phase motor, verify the phase sequence and direction of rotation at the first start-up; a scroll compressor must not be run in reverse.
• Evacuate the system thoroughly before commissioning; moisture leads to oil breakdown and winding failure.
• The stated capacities are at standard test conditions; get the selection confirmed for your own evaporating/condensing conditions.
• If you prefer suction and discharge valves, the valved version of this compressor is also available in our store.

Manufacturer Technical Data

• Cooling Capacity: 29,894 W = 102,000 BTU/h
• Power Input: 9,350 W — COP: 3.20
• Rated Current: 15.90 A — MCC: 25 A
• Displacement: 171.2 cm³/rev
• Oil Charge: 2.80 L
• Net Weight: 69.5 kg
• Sound Level: 72 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R407C

Values are taken from the manufacturer's technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
