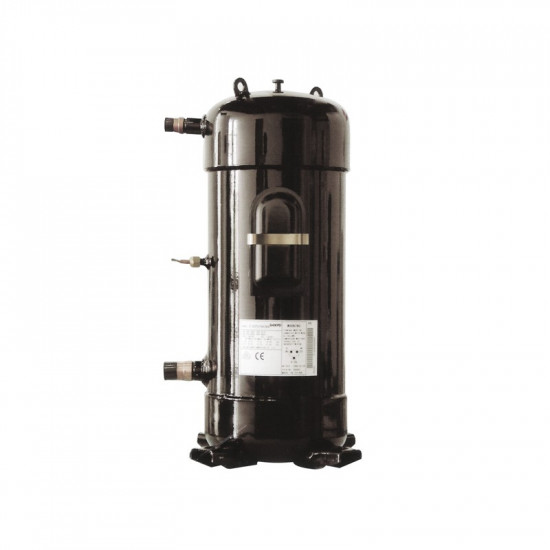

Panasonic C-SCN673H8K Valveless Scroll Compressor – 9 HP / 90,400 BTU, R134A-R404A-R407C

Panasonic Scroll Compressor C-Scn673H8K 9Hp

General Features:

• Compressor Power: 9 HP
• Refrigerant: R134A, R404A, R407C
• Application Type: HBP (High Back Pressure) +7.2℃ / +54.4℃ and MBP (Medium Back Pressure) -10℃ / +45℃.
• Power Supply: 380-440V, 50-60Hz.
• Tandem Capable: The compressor can be used in a tandem configuration, meaning that two or more compressors can be run together to provide higher cooling capacity.

Product Description:

The Panasonic Scroll Compressor C-Scn673H8K is a 9 HP model that is compatible with multiple refrigerant types and can be used in tandem configurations. Offering high efficiency and reliability, this compressor is ideal for various commercial and industrial refrigeration systems.

Applications:

This model is designed especially for use in places such as large commercial buildings, supermarkets, cold storage facilities and production plants. Thanks to its tandem configuration, it is ideal for meeting high cooling needs in larger systems.

Manufacturer Technical Data

• Cooling Capacity: 26,485 W = 90,400 BTU/h
• Power Input: 8,502 W — COP: 3.12
• Rated Current: 14.40 A — MCC: 19 A
• Displacement: 148.8 cm³/rev
• Oil Charge: 2.80 L
• Net Weight: 66.6 kg
• Sound Level: 69 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R407C

Values are taken from the manufacturer's technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
