Panasonic C-SCN603H8K Valveless Scroll Compressor – 8 HP / 83,600 BTU, R134A-R404A-R407C

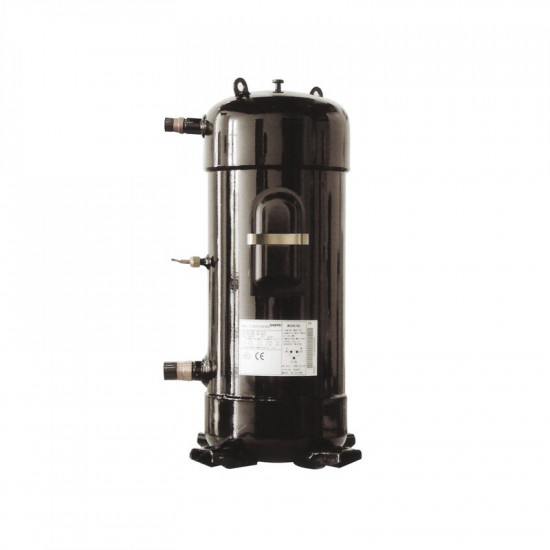

For professionals seeking high capacity in commercial refrigeration and air conditioning systems, the Panasonic C-SCN603H8K Scroll Compressor, with its 8 HP power and wide refrigerant compatibility, delivers reliable performance in many applications, from supermarket display cases to cold storage facilities. With its black hermetic housing, brazed copper connection ports and sturdy lifting lugs, it is suitable for long-term use.

Wide Application Range and Multi-Refrigerant Compatibility

Providing low vibration and quiet operation thanks to scroll technology, this compressor can operate with R134A, R404A and R407C. As it supports both HBP and MBP application ranges, it offers a flexible solution in air conditioning systems and medium-temperature commercial refrigeration cabinets. In facilities requiring high capacity, it can also be used with the tandem connection option.

Key Technical Specifications

According to manufacturer data, the main features are as follows:

• Brand: Panasonic
• Model: C-SCN603H8K
• Type: Hermetic Scroll Compressor
• Compressor Power: 8 HP
• Refrigerant: R134A / R404A / R407C
• Power Supply: 380-440V 50/60Hz
• HBP Application: +7.2℃ / +54.4℃
• MBP Application: -10℃ / +45℃
• Tandem: Suitable

For the correct model and application selection, you can share your system details with our team.

Manufacturer Technical Data

• Cooling Capacity: 24,494 W = 83,600 BTU/h
• Power Input: 7,750 W — COP: 3.16
• Rated Current: 13.20 A — MCC: 22 A
• Displacement: 137 cm³/rev
• Oil Charge: 2.80 L
• Net Weight: 66.5 kg
• Sound Level: 70 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R407C

Values are taken from the manufacturer's technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
