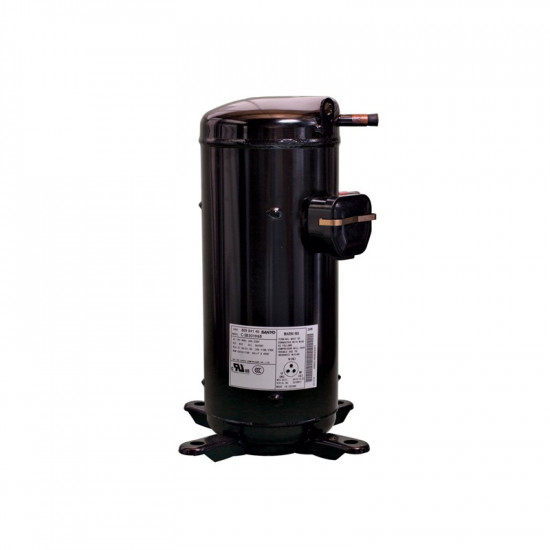

Panasonic C-SBN373H8H Valveless Scroll Compressor – 5 HP / 48,100 BTU, R410A

Panasonic Scroll Compressor C-Sbn373H8H 5Hp R410A

General Features:

• Compressor Power: 5 HP
• Refrigerant: R410A
• Application Type: Suitable for general refrigeration and air conditioning applications
• Power Supply: 380-440V, 50-60Hz
• Tandem Use: Can be used in a tandem configuration

Product Description:

The Panasonic Scroll Compressor C-Sbn373H8H is a 5 HP scroll-type compressor. It is designed to be compatible with R410A refrigerant, which makes it ideal for a refrigerant widely used in modern refrigeration and air conditioning systems. Able to operate in the 380-440V range at 50-60Hz, this compressor adapts to a wide voltage range and can therefore also be used in regions with different electrical standards.

This model, which can be used in a tandem configuration, allows multiple compressors to run together and can thus meet higher-capacity cooling requirements. This feature is particularly important in large commercial or industrial refrigeration systems.

Applications:

Generally suitable for use in commercial and industrial refrigeration systems, air conditioning applications and other similar areas, the Panasonic Scroll Compressor C-Sbn373H8H stands out with its compatibility with modern refrigerants and its high efficiency. Thanks to its tandem configuration, it is an ideal option for larger systems.

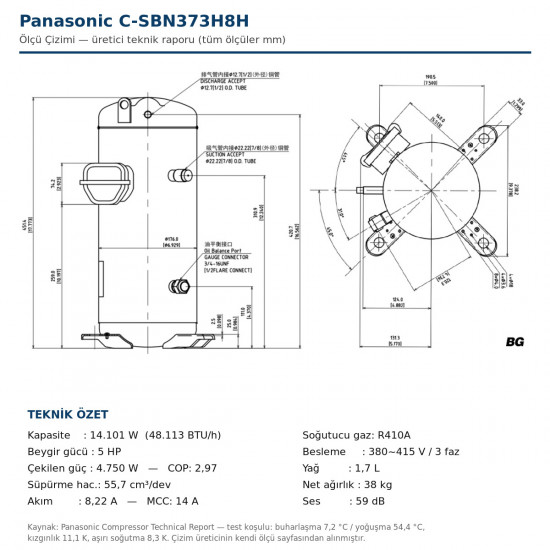

Manufacturer Technical Data

• Cooling Capacity: 14,101 W = 48,100 BTU/h
• Power Input: 4,750 W — COP: 2.97
• Rated Current: 8.22 A — MCC: 14 A
• Displacement: 55.7 cm³/rev
• Oil Charge: 1.70 L
• Net Weight: 38 kg
• Sound Level: 59 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R410A

Values are taken from the manufacturer's technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
