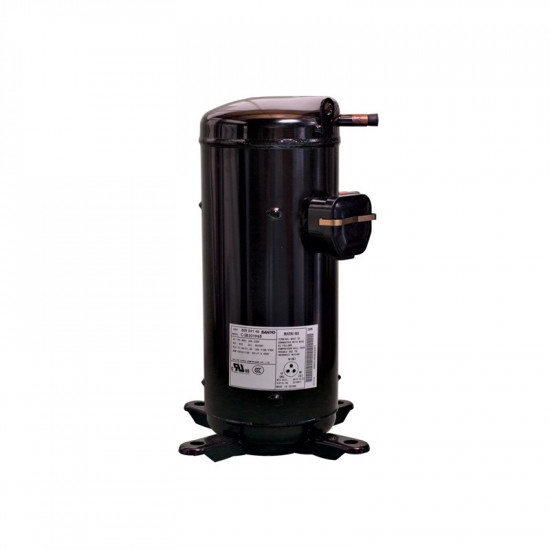

Panasonic C-SBN373H8G Scroll Compressor Without Valves – 5 HP / 49,500 BTU, R134A-R404A-R407C

The Panasonic Scroll C-SBN373H8G is a 5 HP high-performance compressor compatible with R134A, R404A and R407C refrigerants. Designed for both High Back Pressure (HBP) and Medium Back Pressure (MBP) applications, this model can be flexibly integrated into different refrigeration systems.

Product Features

• Compressor Power: 5 HP
• Refrigerant Type: R134A, R404A, R407C
• Application Type:
  • HBP (High Back Pressure): +7.2℃ / +54.4℃
  • MBP (Medium Back Pressure): -10℃ / +45℃
• Power Supply: 380-440V, 50-60Hz

The C-SBN373H8G model operates in the 380-440V range at a 50-60Hz frequency, adapting to different electrical standards with its wide voltage range. It delivers effective and reliable performance in both industrial and commercial refrigeration systems. The well-known characteristics of scroll compressors, namely efficiency, low noise level and long service life, are also evident in this Panasonic model. Thanks to its high-performance design, it saves energy and reduces operating costs.

Applications

The Panasonic Scroll C-SBN373H8G is suitable for use in industrial and commercial refrigeration systems, air conditioning systems and various other applications. Thanks to its compatibility with different refrigerants and its flexible application types, it offers an ideal solution for various conditions and needs.

Why Panasonic C-SBN373H8G?

• A powerful and flexible 5 HP cooling solution
• Compatibility with R134A, R404A and R407C refrigerants
• Wide temperature range in HBP and MBP applications
• Ideal for industrial and commercial use
• Panasonic’s high quality and durability assurance

Visit yedepa.com for the Panasonic C-SBN373H8G and other high-performance compressor solutions and discover the most suitable products for your system.

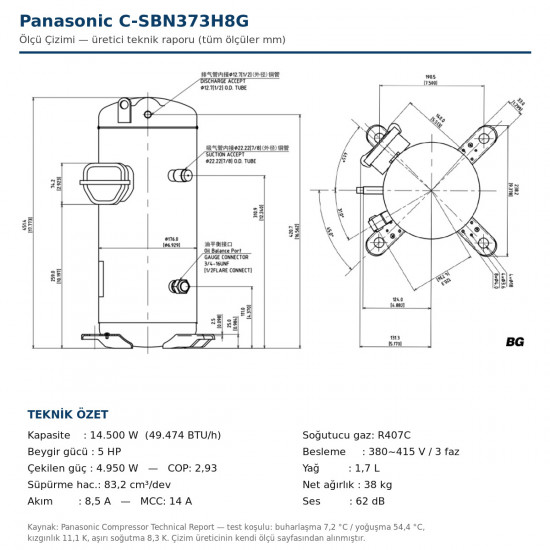

Manufacturer Technical Data

• Cooling Capacity: 14,500 W = 49,500 BTU/h
• Power Input: 4,950 W — COP: 2.93
• Rated Current: 8.50 A — MCC: 14 A
• Displacement: 83.2 cm³/rev
• Oil Charge: 1.70 L
• Net Weight: 38 kg
• Sound Level: 62 dB
• Power Supply: 380~415 V / 3 phase / 50 Hz
• Refrigerant: R407C

Values are taken from the manufacturer's technical report; test conditions: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
