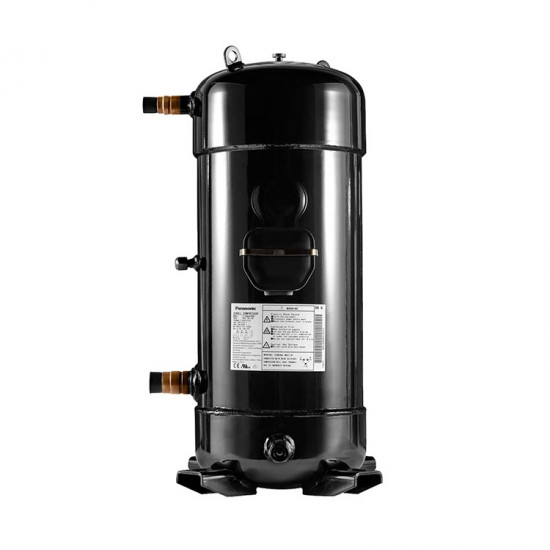

Panasonic 9CD081ZA02 R32 DC Inverter Scroll Compressor – 8.5 HP / 102,500 BTU, Vapor Injection

The Panasonic 9CD081ZA02 is a DC inverter scroll compressor running on R32 refrigerant. Thanks to its vapor injection design, it can maintain its capacity and efficiency at low outdoor temperatures, which makes it a preferred choice especially for heat pump applications.

8.5 HP, 102,500 BTU R32 DC Inverter Scroll Compressor

Thanks to variable-speed (inverter) drive, the speed drops when the system load falls; this means lower energy consumption at part load, fewer on-off cycles and a lower noise level. It runs on a 380-415 V / 3-phase supply.

Key Technical Features and Equipment

• Brand / Model: Panasonic 9CD081ZA02
• Cooling Capacity: 30,046 W = 102,500 BTU/h (8.5 HP)
• Power Input: 8,374 W — COP: 3.59
• Test Condition: evaporating 7.2 °C / condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K
• Displacement: 80.5 cm³/rev
• Nominal Speed: 3,600 rpm
• Current: 24.23 A — MCC: 53 A
• Mass Flow: 430.4 kg/h
• Power Supply: 380-415 V / 3-phase
• Refrigerant: R32
• Compressor Type: Scroll, DC inverter, vapor injection
• Oil: 1.6 L (FW68CA)
• Net Weight (including oil): 41.4 kg
• Noise Level: max. 73 dB

The compressor has a wide operating envelope: capacity values are defined in the manufacturer’s technical report for condensing 20-60 °C and evaporating −30…+15 °C. For example, at condensing 45 °C / evaporating 5 °C the capacity is 31,388 W, and at condensing 30 °C / evaporating −10 °C it is 19,856 W.

Manufacturer Technical Data

• Cooling Capacity: 30,046 W = 102,500 BTU/h
• Power Input: 8,374 W — COP: 3.59
• Nominal Current: 24.23 A — MCC: 53 A
• Displacement: 80.5 cm³/rev
• Oil Quantity: 1.60 L
• Net Weight: 41.4 kg
• Noise Level: 73 dB
• Power Supply: 380~415 V / 3-phase (speed set by the drive; rated point 3,600 rpm)
• Refrigerant: R32

Values are taken from the manufacturer’s technical report; test condition: evaporating 7.2 °C, condensing 54.4 °C, superheat 11.1 K, subcooling 8.3 K.
