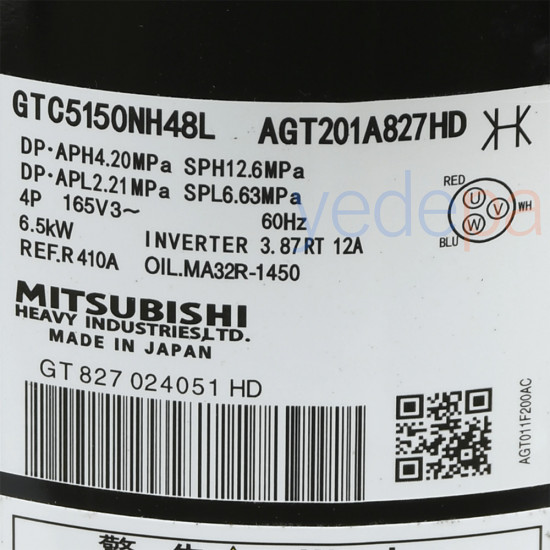

Mitsubishi GTC5150NH48L Inverter Scroll Compressor - AGT201A827HD

High-Performance, Efficient Inverter Scroll Compressor

The Mitsubishi Inverter Scroll Compressor GTC5150NH48L, with a 6.5kW power rating and R410A refrigerant, is designed for refrigeration and air conditioning systems. Highly durable, this compressor is ideal for modern systems with energy-efficient inverter technology. With Made in Japan quality, it offers a long service life.

Product Features

• Model: GTC5150NH48L
• Product Code: AGT201A827HD
• Operating Power: 6.5kW
• Refrigerant: R410A
• Operating Pressure:
  • DP-APH: 4.20MPa
  • DP-APL: 2.21MPa
  • SPH: 12.6MPa
  • SPL: 6.63MPa
• Motor: 4P 165V~3 (Phase)
• Frequency: 60Hz
• Oil Type: MA32R-1450
• Current Rating: Inverter: 3.87RT, 12A
• Country of Manufacture: Japan

Applications

This compressor is used in commercial and industrial refrigeration systems, air conditioners and heat pump applications. Thanks to inverter technology, it provides energy efficiency and delivers high performance under variable loads.

Advantages

• High durability and long service life
• Energy-saving inverter technology
• Environmentally friendly cooling with R410A refrigerant
• Versatile use thanks to a wide operating pressure range
• Superior quality with Japanese engineering

Installation and Maintenance

During installation, make sure the compressor is connected correctly and the oil level is appropriate. Periodic maintenance should be carried out and refrigerant leaks should be checked. Use in accordance with the technical instructions extends the compressor's life and ensures maximum performance.
