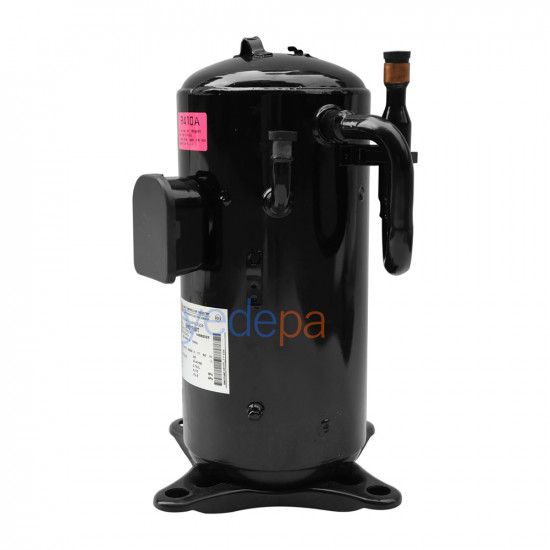

Mitsubishi AN33YBFMT Scroll Compressor – 3.3 HP, R410A, 28,770 BTU, 380V/420V, HBP Compatible

The Mitsubishi AN33YBFMT Scroll Compressor stands out for its high efficiency and quiet operation and is an ideal solution for industrial and commercial air conditioning systems. This 3.3 HP model runs on R410A refrigerant and is suitable for High Back Pressure (HBP) applications in the +12°C to -20°C range. With a capacity of 28,770 BTU (50 Hz), it delivers powerful and reliable performance in your systems.

Technical Specifications

• Model: AN33YBFMT
• Nominal Power: 3.3 HP
• Refrigerant: R410A
• Cooling Capacity: 28,770 BTU (50Hz)
• Operating Range: +12°C / -20°C (HBP)
• Frequency: 50 Hz - 60 Hz
• Voltage: 380V / 420V (50Hz) – 460V (60Hz)
• Connection Type: Brazed
• Suction Valve Connection: 3/4"
• Discharge Valve Connection: 1/2"

Applications

The AN33YBFMT model is widely used in cold rooms, VRF systems, commercial refrigerators and other professional refrigeration solutions.

Advantages

• Quiet, vibration-free operation thanks to scroll technology
• Low operating cost thanks to high energy efficiency
• Environmentally friendly performance with R410A
• Adapts to demanding conditions with a wide operating range
• Durable housing and long service life

Frequently Asked Questions

What are the power and capacity of the Mitsubishi AN33YBFMT scroll compressor?

It has a nominal power of 3.3 HP and a cooling capacity of 28,770 BTU at 50 Hz; it runs on R410A refrigerant.

Which operating range is the AN33YBFMT compressor suitable for?

It is suitable for high back pressure (HBP) applications in the +12°C to -20°C range.

What are the voltage and connection specifications of the AN33YBFMT compressor?

It runs on 380V/420V (50 Hz) and 460V (60 Hz). The connection type is brazed; the suction valve connection is 3/4 inch and the discharge valve connection is 1/2 inch.

In which systems is this scroll compressor used?

It is used in cold rooms, VRF systems, commercial refrigerators and other professional refrigeration solutions. Scroll technology provides quiet, vibration-free operation.
