Huayi B43CB Hermetic Refrigerator Compressor – 1/12 HP, R600a, LBP 69 W

Huayi B43CB is a 1/12 HP hermetic reciprocating compressor manufactured for small household refrigerators and freezers. It operates with R600a (isobutane); with a displacement of 4.3 cm³ it delivers a cooling capacity of 69 W (235 BTU/h) under LBP conditions.

Compact R600a LBP Refrigerator Compressor

The B series is a compact compressor family with a height of 145 mm and a weight of 4.6 kg. The product comes with the Huayi label; it is the same model as the Cubigel B43CB, and the capacity values in the technical data sheets of both brands are identical. Its statically cooled body fits capillary tube systems directly.

Key Technical Specifications and Equipment

• Brand / Model: Huayi B43CB · Cubigel B series
• Refrigerant: R600a (isobutane) · EN 60335-2-34 explosion safety approved for R290 and R600a
• Application: LBP (low back pressure) · evaporating −35 … −15 °C
• Displacement: 4.30 cm³ · bore 19.0 mm · stroke 15.2 mm
• Power supply: 220-240 V / 50 Hz single-phase · operating range 187-255 V
• Cooling: static · expansion: capillary tube
• Oil: ISO VG 10 mineral, 120 cm³

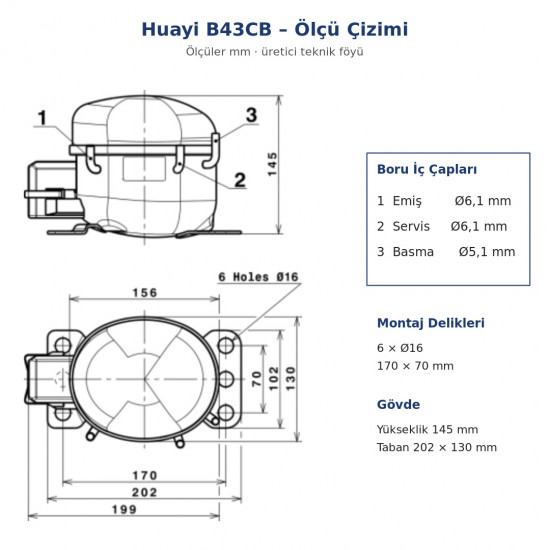

• Tube inner diameters: suction Ø6.1 · process Ø6.1 · discharge Ø5.1 mm
• Dimensions: height 145 mm · base 202 × 130 mm
• Mounting holes: 6 × Ø16 (170 × 70 mm)
• Weight: 4.6 kg · max. ambient temperature 43 °C

Cooling Capacity (ASHRAE, Condensing +55 °C)

Test conditions: liquid, ambient and suction temperature 32 °C. Capacity decreases as the evaporating temperature drops.

• 🔥 R600a is a flammable refrigerant (A3 class). Brazing, leak testing and charging must follow the rules for flammable refrigerants: a ventilated area, no sources of ignition and the correct charge quantity are essential. This compressor is for R600a systems only.
• 🔧 When replacing: Match the refrigerant, LBP class and displacement of the old compressor; compare the mounting hole spacing with the dimensional drawing.
• Application limit: This model is LBP — for refrigerators and freezers. It is not used in high evaporating temperature (HBP) applications such as water dispensers and bottle coolers.
