Hpeok PKEK-165S Liquid Line Filter Drier | 5/8 inch ODF Solder, Solid Core | Compatible with R134a, R22, R407C, R404A, R507, R502

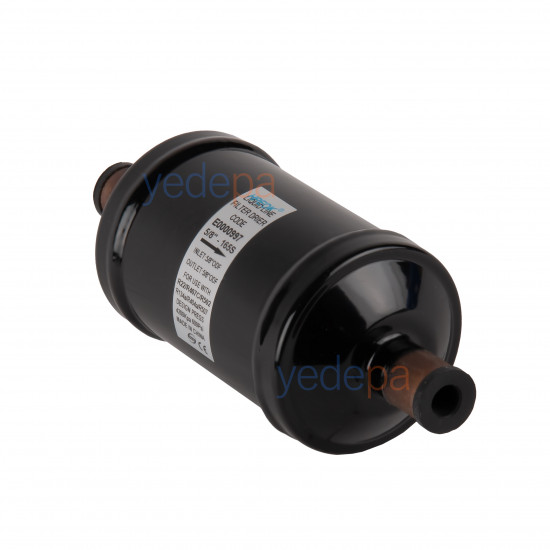

Hpeok PKEK-165S is a solid core filter drier fitted in the liquid line of refrigeration and air conditioning circuits — known in the field as a solid core drier. By retaining moisture, acid and solid particles in the refrigerant, it prevents blockage of the expansion valve and acid-related winding damage in the compressor. Its connection is 5/8 inch ODF solder, with inlet and outlet of the same size.

The desiccant fill is not loose granules but a single pressed block. In granular driers, the beads rub against each other under vibration and produce dust, and the fill settles over time, opening a bypass channel inside; this does not happen with a block core, and the filtration characteristics remain intact. Solid particle retention is 40 micron, and the pressure drop is low.

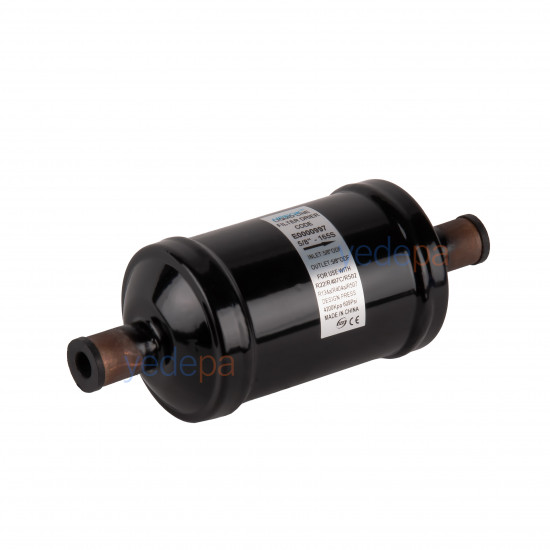

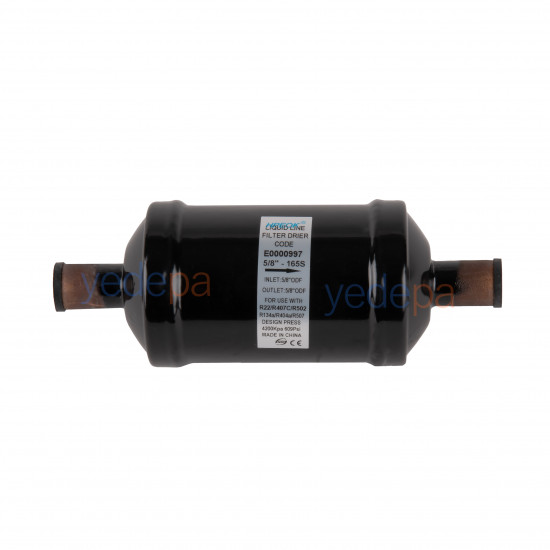

The outside of the body is coated with epoxy powder paint; it withstands harsh conditions such as UV, moisture and salt air, and can also be used on condensing units installed outdoors. The arrow on the body shows the flow direction — if the drier is fitted backwards, the filter element is loaded from the wrong direction.

Technical Specifications

• Brand / type: Hpeok PKEK-165S
• Product type: Solid core liquid line filter drier — drier
• Connection: 5/8 inch ODF solder (brazed) — inlet 5/8 inch, outlet 5/8 inch
• Overall length (A): 160 mm
• Between connection ends (B): 112 mm
• Body diameter (D): Ø63.5 mm
• Filtration: 40 micron
• Design pressure: 42 bar (4,200 kPa / 609 psi)
• Body coating: Epoxy powder paint
• Certification: CE / PED, CNAS
• Quantity per carton: 25

Compatible Refrigerants

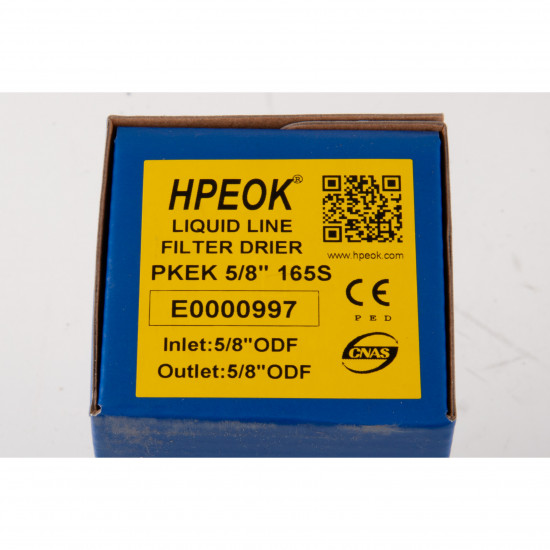

Refrigerants listed on the product label: R22, R407C, R502, R134a, R404A, R507. It works in both HCFC and HFC circuits, with mineral and POE oil.

PKEK Code Reading and Size Equivalence

In the PKEK series, the last digit of the code gives the connection size: 162 1/4 inch, 163 3/8 inch, 164 1/2 inch, 165 5/8 inch, 166 3/4 inch, 167 7/8 inch. The S at the end indicates a solder (ODF) connection; models without S are flare. Accordingly, PKEK-165S is 5/8 inch solder, and its flare equivalent is PKEK-165.

In all PKEK models sharing the 16 series body, the body diameter is Ø63.5 mm and the distance between connection ends is 112 mm; only the overall length changes with the connection type. PKEK-165S is 160 mm, while its flare equivalent PKEK-165 is 185 mm. It replaces solid core driers of the same size class (Danfoss DML/DCL 165S: 158 mm, 5/8 inch ODF).

Where Is It Used

It is used in commercial refrigeration and air conditioning circuits with a 5/8 inch liquid line: cold room units, blast chillers, supermarket display case units, split and packaged air conditioner lines, heat pumps and condensing units.

When Should It Be Replaced

• When replacing the compressor — the drier is renewed together with the new compressor.
• When the circuit has been opened (tube replacement, leak repair) — an opened circuit takes in moisture.
• If a temperature difference that can be felt by hand has developed between the drier inlet and outlet (sign of blockage).
• If the moisture indicator in the sight glass has turned yellow.

Frequently Asked Questions

What size line does the Hpeok PKEK-165S fit?

It fits a 5/8 inch liquid line. Both inlet and outlet are 5/8 inch ODF solder connections; no adapter fitting is needed.

What is the difference between a solid core drier and a normal drier?

In a solid core drier, the desiccant is a single pressed block; in the granular type it consists of loose beads. A block core does not crumble and release dust under vibration, and does not settle over time and open a bypass channel inside, so the filtration characteristics remain intact.

Which refrigerants is PKEK-165S used with?

R22, R407C, R502, R134a, R404A and R507 are listed on the product label. The design pressure is 42 bar (4,200 kPa / 609 psi).

What is the difference between PKEK-165S and PKEK-165?

The body is the same; the connection type is different. The S at the end indicates a solder (ODF) connection, and the model without S indicates a flare connection.

In which direction is the drier fitted?

The arrow on the body shows the flow direction; it is fitted so that the arrow points in the direction of flow from the condenser to the expansion valve.

What are its dimensions, will it fit in a tight installation?

Its overall length is 160 mm, the distance between connection ends is 112 mm, and the body diameter is Ø63.5 mm. It has the same installation length as equivalent solid core driers with 5/8 inch ODF connections.
