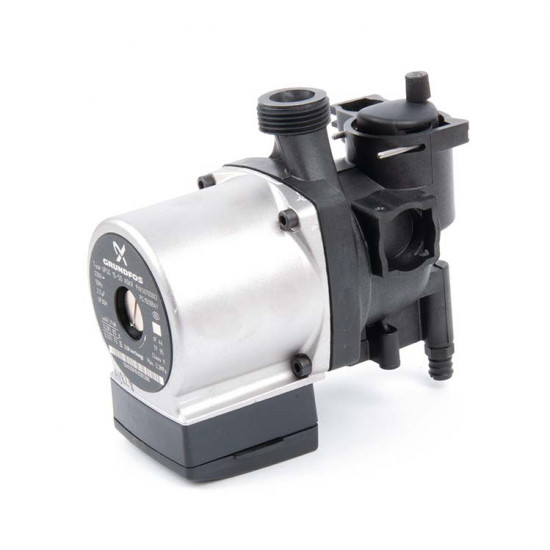

Grundfos 75w Combi Boiler Circulation Pump

Model and Type

• Brand: Grundfos
• Type: UP30 15-50 A0KR
• PIN: S785003
• PC: 19268AY

Electrical Specifications

• Power (Watt): 75W - Electrical consumption of the pump.
• Protection Class: IP 44 - Protected against splashing liquids.
• Amps (A): 0.33A - Current drawn by the pump.
• Insulation Class: H - Insulation resistant to high temperatures.

Other Features

• Temperature: TF 95 - Maximum liquid temperature 95°C.
• Max. Pressure: 0.3MP - Maximum operating pressure.

Easy Installation

You can fit the new Grundfos motor to your own pump housing (the black plastic part that circulates the water used in heating systems) by removing the Allen screws of your old pump, so you can replace the spare part easily and quickly.

Applications

These pumps are generally used to circulate hot water in heating systems and are preferred in domestic combi boilers and central heating systems.
