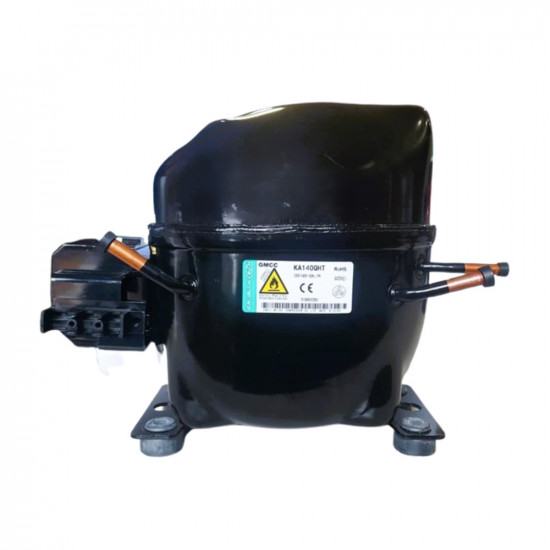

GMCC KA140QHT Hermetic Compressor – 1/2+ HP, R290, 1,850 W / 6,312 BTU/h

GMCC KA140QHT is a 1/2+ HP hermetic reciprocating compressor made for light commercial refrigeration. It operates with R290 (propane); with a displacement of 14.0 cm³ it delivers a cooling capacity of 1,850 W (6,312 BTU/h) under HBP conditions.

R290 Propane: Low GWP, High Efficiency — The New Standard in Light Commercial Refrigeration

R290 is now becoming the standard in light commercial refrigeration. With its fan-cooled body and CSR motor, this compressor series can start even at high ambient temperatures; it is directly suitable for capillary tube systems.

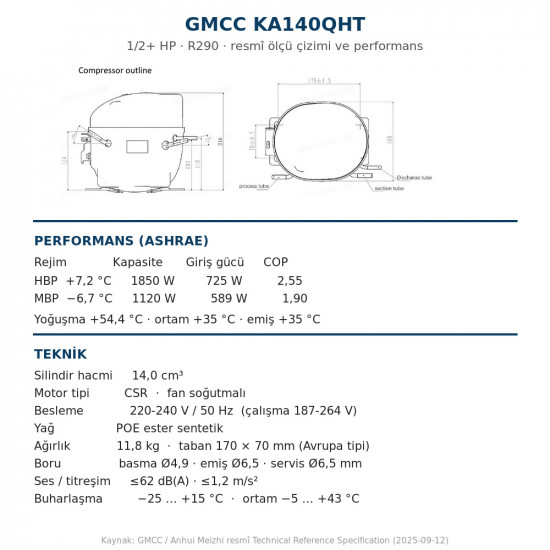

Performance (ASHRAE Test Condition)

Condensing +54.4 °C · ambient +35 °C · suction +35 °C · subcooling 46.1 °C

As the evaporating temperature drops, capacity decreases. When selecting, base your choice on the range closest to your target cabinet temperature.

Technical Specifications (Official GMCC Technical Reference Specification)

• Model: GMCC KA140QHT · manufacturer Anhui Meizhi Compressor (GMCC)
• Power: 1/2+ HP · displacement 14.0 cm³
• Refrigerant: R290 (propane) — GWP 3
• Application: M/HBP (medium and high back pressure) — cooler cabinets, display cases, merchandising counters
• Motor type: CSR (capacitor start + capacitor run)
• Power supply: 220-240 V / 50 Hz single-phase · operating range 187-264 V
• Cooling: fan cooled · expansion: capillary tube
• Oil: POE ester synthetic
• Weight (including oil): 11.8 kg
• Tube diameters (inside): discharge Ø4.9 · suction Ø6.5 · service Ø6.5 mm — copper
• Base plate: European type 170 × 70 mm
• Noise level: ≤62 dB(A) · vibration ≤1.2 m/s²
• Operating limits: evaporating −25 … +15 °C · ambient −5 … +43 °C · max. condensing 65 °C
• Max. discharge pressure: 2.34 MPa · max. winding temperature 130 °C · max. body 90 °C

Box Contents

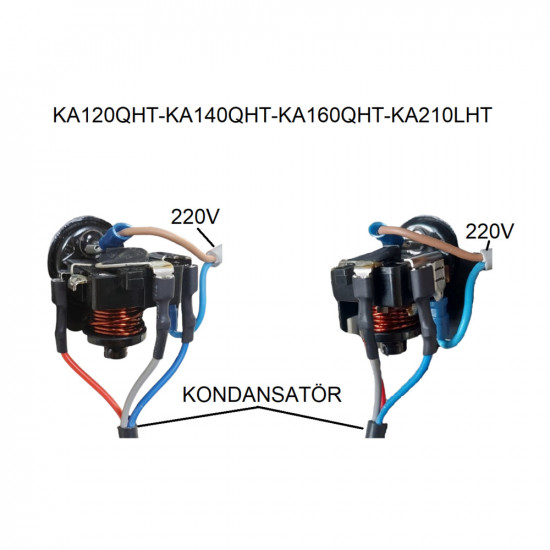

According to the manufacturer's delivery list, the box contains: compressor · relay · run + start capacitor · terminal cover · cable clamp and screws · 4 rubber grommets · grounding screw. The capacitor does not need to be purchased separately.

• 🔥 R290 is a flammable refrigerant (A3 class). Installation, leak checking and service work must be carried out according to flammable refrigerant rules: a ventilated area without ignition sources, suitable recovery equipment and compliance with charge limits are essential. This compressor is for R290 systems only.
• 💡 Why R290? Propane has a GWP value of 3 (3,922 for R404A, 1,430 for R134a). Because the F-Gas regulation gradually restricts high-GWP refrigerants, R290 systems are not affected by quota and price pressure. It also requires a smaller charge and gives higher efficiency for the same capacity.
• 🔧 Operating interval: The manufacturer requires ON > 5 minutes, OFF > 5 minutes. If the thermostat cycles on and off too often, compressor life is shortened; use a time-delay relay if necessary.
• 🔧 Pressure equalization at start-up: Starting is difficult if the high and low pressure sides have not equalized. In capillary tube systems this happens naturally; in a system with an expansion valve, consider a bypass.
• 🔧 Installation: Fix it without removing the grommets and without exceeding a tilt of 5°. When connecting a Schrader valve to the service tube, braze with at least 5 cm of tube; do not mix up the suction and service tubes.
• Application limit: This series is M/HBP — it is for cooler (positive temperature) cabinets. It is not used in freezer (LBP) applications.
