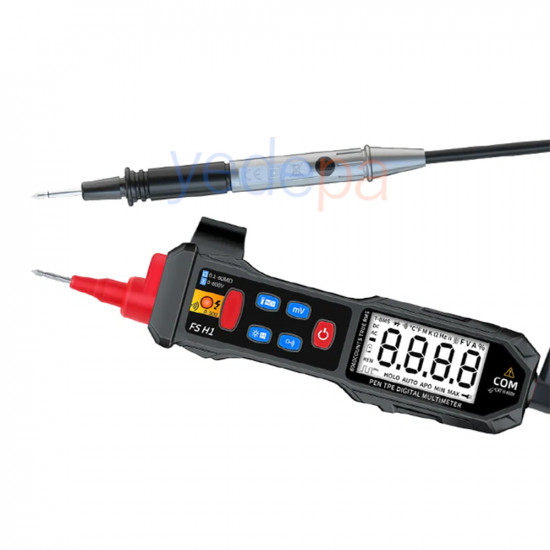

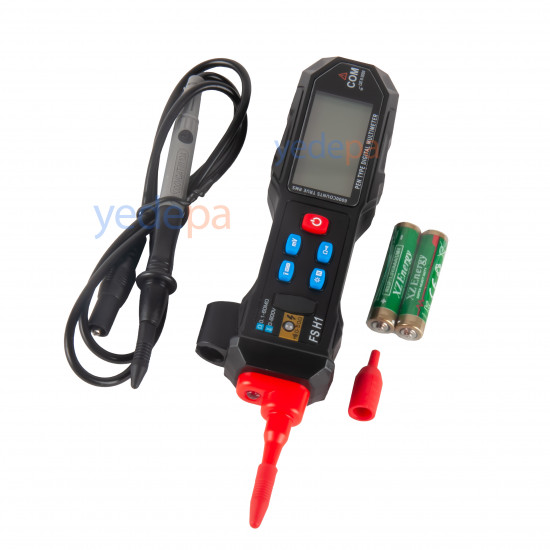

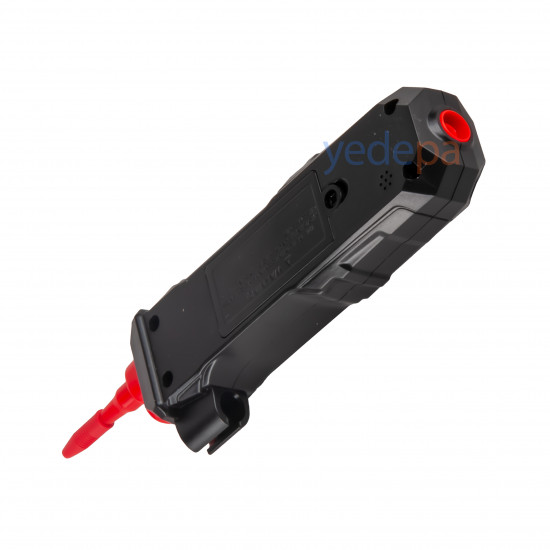

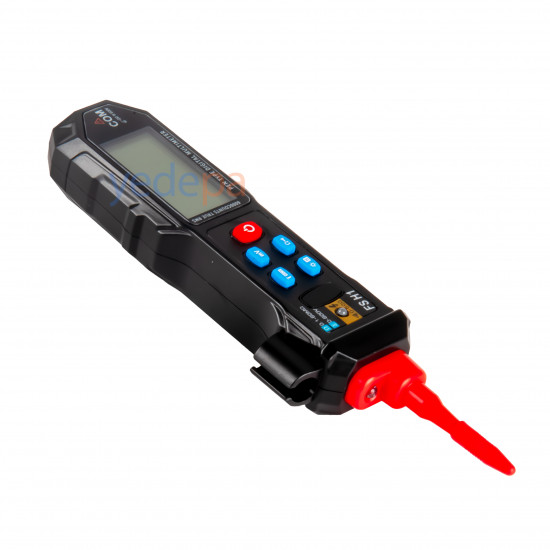

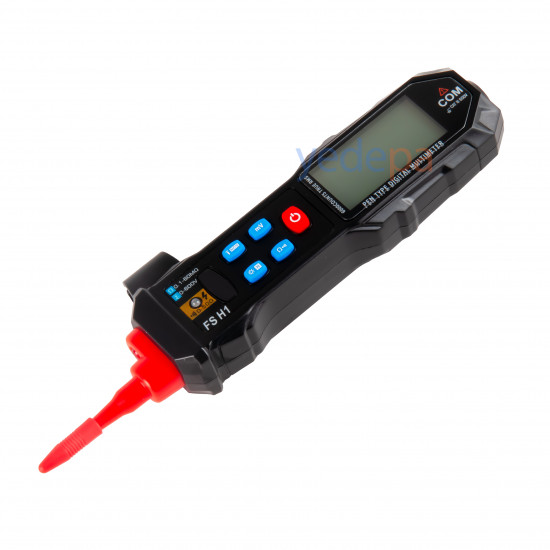

FS H1 Pen-Type Digital Multimeter - Precise and Portable Measuring Device

Professional Device Equipped with Precision Measurement Technology

The FS H1 Pen-Type Digital Multimeter is a compact, ergonomic device developed for detailed measurements in electrical and electronic systems. The device's auto ranging and user-friendly design make measurements both fast and accurate. It is designed especially for technicians, engineers and other professionals working in electrical maintenance and repair.

Superior Features

• Multiple Measurement Functions: Measures AC/DC voltage (60mV – 600V), resistance (10Ω – 60MΩ), capacitance (6nF – 60mF), and performs continuity and diode tests.
• NCV (Non-Contact Voltage Detection): The device detects AC voltage without physical contact with the electrical line and gives an LED light and audible alert.
• Smart Auto Ranging: Switches automatically between wide measuring ranges, minimizing user intervention.
• Precise LCD Display: The backlit 5999-count display ensures easy readability even in dark environments.
• Durable, Lightweight Design: Thanks to its ergonomic pen-type design, it is both portable and durable. It weighs only 110 grams.
• Energy Efficiency: Saves energy with auto power-off after 15 minutes of inactivity.
• Efficient Test Modes: The continuity test gives an audible alert to quickly detect faulty circuits during resistance measurement.
• Power Supply: Runs on 2 AAA batteries or a rechargeable 200mAh Li battery.

Applications

The FS H1 Pen-Type Digital Multimeter offers a wide range of applications in the maintenance and repair of electrical systems:

• Fault finding in electrical installations and appliances.
• Circuit and equipment continuity checks.
• AC/DC voltage measurement and power system analysis.
• Diode and capacitance testing of electronic devices.
• Industrial electrical maintenance and repair work.

Technical Specifications

Safety Warnings

The FS H1 Multimeter is designed to provide maximum safety during use. However, the following safety warnings must be observed:

• Do not measure voltages above 600V.
• Replace the battery immediately when the low battery indicator is active.
• To avoid the risk of electric shock, do not use the device if its housing parts are missing or damaged.

Why Choose the FS H1 Multimeter?

With reliable measurement results, a durable construction and versatile features, the FS H1 makes professionals' work easier. It offers all the measurement features needed especially in electrical maintenance and repair in a single device.
