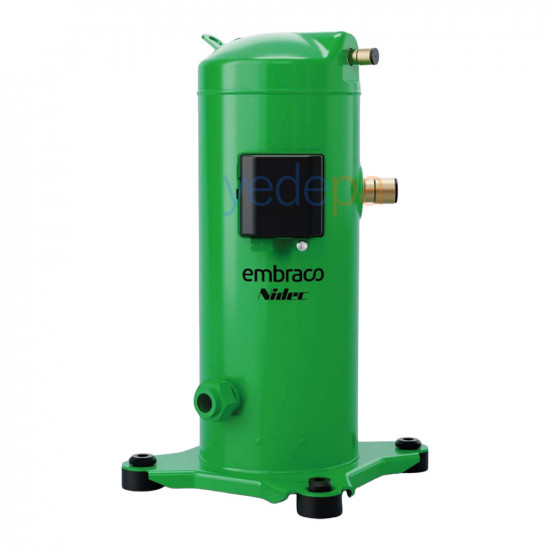

Embraco ERF37G-A1-NBBM Scroll Compressor | 5 HP | 30,806 BTU/h (9,020 W) MBP Cooling | Three-Phase | R404A (With Service Valves)

The Embraco ERF37G-A1-NBBM scroll compressor is designed for medium temperature (MBP) commercial refrigeration applications — cold rooms, supermarket aisles, beverage coolers and medium temperature display cabinets. With a nominal power of 5 HP, it runs on a three-phase (380-420V / 3~ / 50Hz) supply in the MBP (medium back pressure) range. With R404A refrigerant it delivers a cooling capacity of 30,806 BTU/h (9,020 W) at AHRI MBP (-6.7°C / +48.9°C) conditions; it is supplied with service valves.

5 HP Three-Phase MBP Commercial Refrigeration Scroll Compressor (R404A) (With Service Valves)

Embraco (Nidec Global Appliance) scroll compressors deliver reliable and durable performance in medium temperature commercial refrigeration with few moving parts, low vibration and high efficiency. The ERF37G-A1-NBBM is a three-phase solution compatible with R404A/R507/R452A refrigerants.

Key Features

• Scroll technology — few parts, low vibration, high efficiency
• 5 HP nominal, three-phase (380-420V / 3~ / 50Hz) supply
• MBP (medium back pressure) range; R404A / R507 / R452A compatible
• 30,806 BTU/h (9,020 W) MBP cooling capacity
• Supplied with service (rotalock) valves

Technical Specifications

• Brand / Model: Embraco (Nidec) / ERF37G-A1-NBBM
• Type: Scroll compressor, hermetic, fixed speed
• Application: Commercial refrigeration — medium temperature (MBP)
• Nominal Power: 5 HP (5 horsepower)
• Power Supply: Three-phase — 380-420V / 3~ / 50Hz (60Hz: 460V)
• Cooling Capacity: 30,806 BTU/h (9,020 W) — R404A, AHRI MBP (-6.7°C / +48.9°C)
• Displacement: 82 cm³/rev (14.3 m³/h @ 2900 rpm / 50Hz)
• Compatible Refrigerants: R404A / R452A / R448A / R449A / R507 / R134a
• Service Valve: Yes (rotalock)
• Weight: ~31 kg (based on equivalent)
• Equivalent (cross-reference): Copeland ZB38KQE, Danfoss MLZ038

Technician Tips

• Braze the service (rotalock) valve connections under nitrogen to prevent internal oxidation.
• Verify the phase sequence and direction of rotation of the three-phase motor at first start-up; a scroll compressor must not run in reverse.
• Evacuate the system thoroughly before commissioning; moisture leads to oil breakdown and winding failure.
• The stated capacity is at AHRI MBP (-6.7°C / +48.9°C) conditions; confirm it for your own conditions with the Embraco selection tool.
