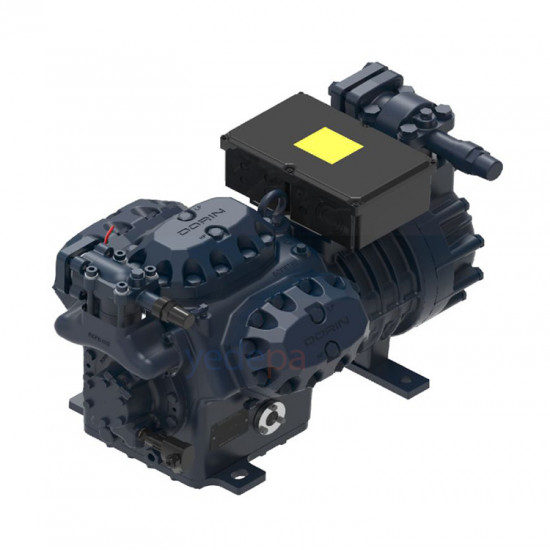

Dorin H Series H 4000 CC Semi-Hermetic Compressor

For installers seeking high capacity in commercial and industrial refrigeration systems, the Dorin H Series H 4000 CC Semi-Hermetic Compressor delivers powerful and stable performance in low-temperature applications with R404A / R507 refrigerants. With its robust Italian-made reciprocating body, it promises long-lasting operation.

High Capacity and Durability in Low-Temperature Refrigeration

Designed for the heavy loads of cold storage rooms, blast freezing rooms and freezer display groups, this semi-hermetic compressor works reliably at low evaporating temperatures down to -45°C thanks to its wide operating range. The thick-finned cylinder cover and cast body, also prominent in the image, keep heating under control in intensive operating conditions through effective heat dissipation. Its detachable design, which provides ease of service and maintenance, reduces loss and waste rates.

Key Technical Specifications

The main performance and connection values of the H 4000 CC model are below:

• Model: H 4000 CC
• Displacement: 127.52 m³/h
• Operating Range (R404A / R507): +7.5 / -45 °C
• Maximum Operating Current (380-420V / 3 / 50Hz): 75 A
• Locked Rotor Current (380-420V / 3 / 50Hz): 290 A
• Suction Connection: 54 mm
• Discharge Connection: 35 mm
• Oil Volume: 3.5 Liters
• Origin: Italy
