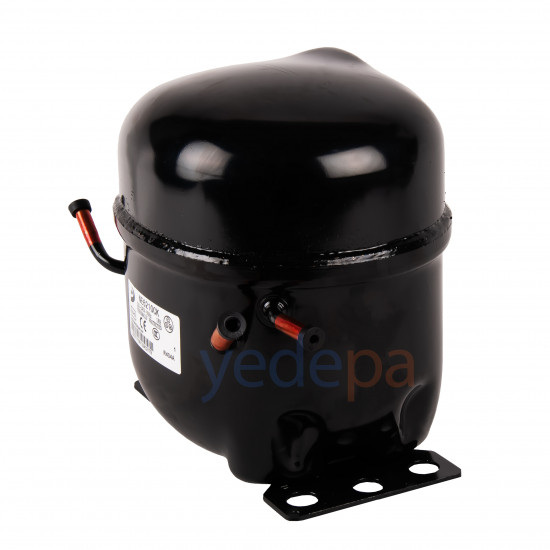

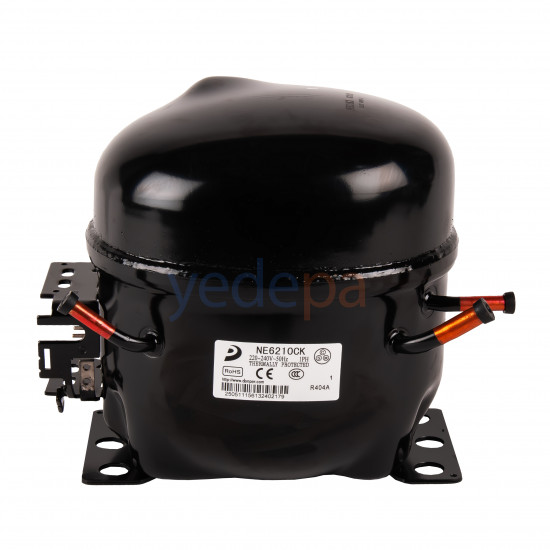

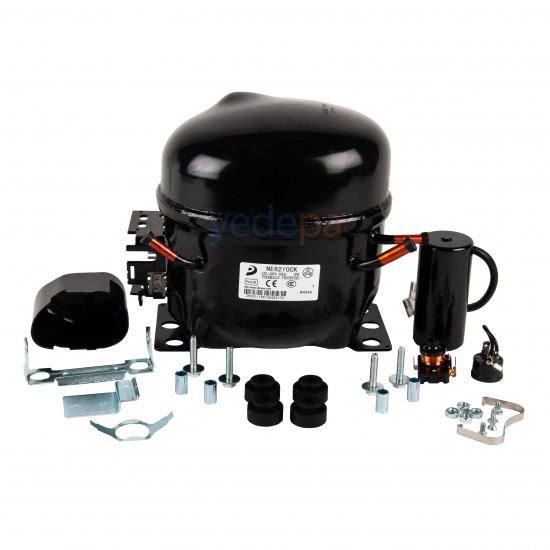

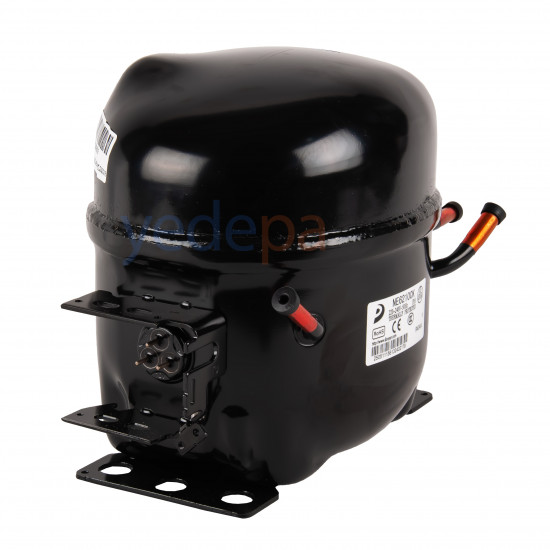

Donper NE6210CK 3/8 HP R404A Medium/High Temperature Commercial Refrigeration Compressor – CSIR Motor, 220-240V 50Hz, 1250W Capacity

Product Description

The Donper NE6210CK is a 3/8 HP compressor operating with R404A refrigerant, developed for medium and high temperature applications. Thanks to its energy-efficient CSIR motor technology, it offers quiet operation, low energy consumption and long-lasting performance. Among Donper's reliable refrigeration solutions, this model is ideal for commercial refrigerators, dairy cabinets and display-type coolers.

Technical Specifications

• Model: NE6210CK
• Motor Type: CSIR (Capacitor Start Induction Run)
• Power: 3/8 HP
• Displacement: 9.0 cm³
• COP (w/w): 1.80
• Cooling Capacity (+7.2 / +54.4°C): 1250 W
• Operating Voltage: 220–240 V / 50 Hz
• Refrigerant: R404A
• Application Type: Medium / High Temperature
• Connection Type: Copper pipe connection

Product Advantages

• CSIR motor system with high energy efficiency
• Low vibration and quiet operation
• Full compatibility with R404A refrigerant
• Compact and durable housing
• Long-lasting use and stable performance

Applications

The Donper NE6210CK 3/8 HP compressor is used reliably in commercial refrigeration systems operating at medium and high temperatures. Its applications include:

• Supermarket-type refrigerators
• Display-type coolers
• Dairy and beverage cabinets
• Restaurant and cafe-type commercial coolers

Technical Documents and Installation Information

The electrical wiring diagram and installation instructions of Donper compressors are given in the technical documents. During connection, the phase, neutral and ground terminals must be connected correctly. The gas return line must be installed properly to the suction line.

With the Yedepa Guarantee

Yedepa offers a quality, performance and service compatibility guarantee for Donper compressors. All products are tested before shipment and are sent together with their original technical documents.
