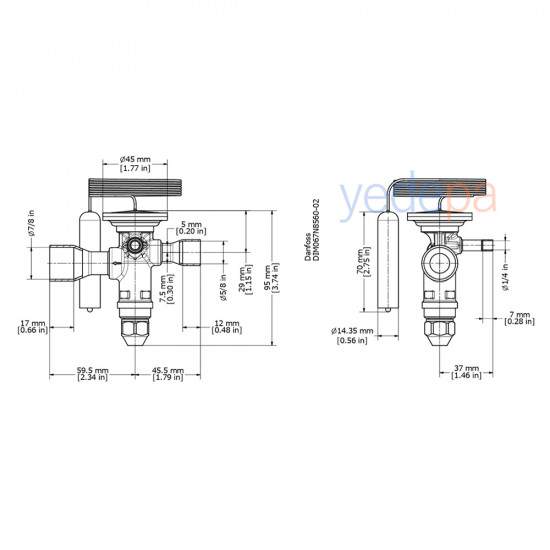

Danfoss TGE Thermostatic Expansion Valve - R404A / R507A, Externally Equalised, Balanced Port, 5/8" x 7/8" Solder - 26 kW - Part No: 067N6154
- Stock: In Stock
- Brand: Danfoss
- Model: 18.30.125
Product Description
The Danfoss TGE 067N6154 thermostatic expansion valve is a high-efficiency expansion valve with an externally equalized and balanced port design, specially designed for commercial refrigeration systems running on R404A and R507A refrigerants. With its 26 kW (7.5 TR) capacity, it is suitable for medium-scale refrigeration applications. Its solder (ODF) connections of 5/8" inlet and 7/8" outlet make installation easy. A 1500 mm capillary tube and bulb strap are supplied with the product.
Technical Specifications
- Brand: Danfoss
- Model: TGE
- Part Number: 067N6154
- EAN: 5702428143417
- Refrigerants: R404A, R507A
- Connection Type: Solder (ODF), 5/8" inlet – 7/8" outlet
- Equalisation Type: External Equalisation (1/4" ODF)
- Port Design: Balanced port
- Orifice No: 11
- Orifice Capacity: 26 kW / 7.5 TR
- Operating Temperature Range: -40°C to +10°C
- Superheat Setting: Adjustable
- Static Superheat: 4 °C (7.2 °F)
- Capillary Tube Length: 1500 mm (59 inch)
- Flow Direction: Bi-flow (shown by the arrow on the body)
- Body Material: Brass
- Connection Material: Copper
- Element Temperature Limit: 110 °C (230 °F)
- Maximum Working Pressure: 49 bar (711 psig)
- Serviceability: Not serviceable
- Accessories: Bulb strap included
Nominal Capacity (at Standard Conditions)
- SI: Tcond = 38°C, Tevap = 4.4°C, Tliq = 37°C
- Imperial: Tcond = 100°F, Tevap = 40°F, Tliq = 98°F
Certificates and Compliance
- Approvals: UL, EAC, LLC CDC TYSK
- UL Approved Refrigerants: R404A, R507A
- PED Category: Article 4, Paragraph 3
- EU RoHS Compliance: Yes, exemption: 6(c)
- China RoHS: Out of scope
- SCIP Dossier No: d44ec740-dfe8-4c0a-9644-96406f010504
