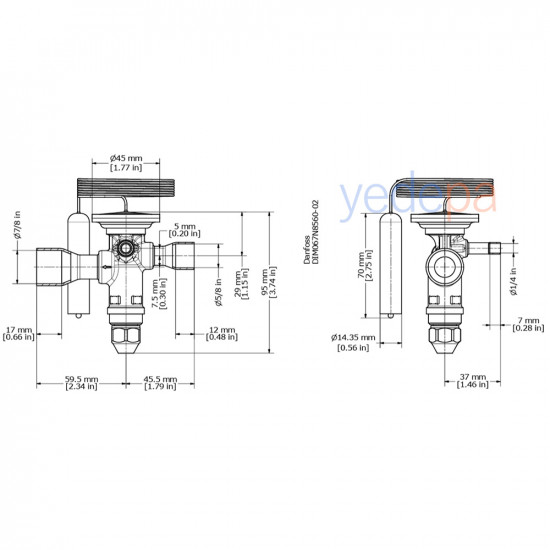

Danfoss TGE Thermostatic Expansion Valve - R134a / R513A, Externally Equalized, Balanced Port, 5/8" x 7/8" Solder - 24 kW - Part No: 067N5157
- Stock: In Stock
- Brand: Danfoss
- Model: 18.30.305
Product Description
Danfoss TGE 067N5157 is a balanced port and externally equalized thermostatic expansion valve developed for refrigeration systems operating with R134a and R513A refrigerants. With its 24 kW (7 TR) capacity, it can be used safely in small and medium-sized commercial systems. The model, which has 5/8 inch inlet and 7/8 inch outlet connections, features a solder (ODF) connection type. A 1500 mm long capillary tube and a sensor strap are supplied with the product.
Technical Specifications
- Brand: Danfoss
- Model: TGE
- Part Number: 067N5157
- EAN: 5702428165624
- Refrigerants: R134a, R513A
- Connection Type: Solder (ODF), 5/8" inlet – 7/8" outlet
- Equalization Type: External Equalization (1/4" ODF)
- Port Design: Balanced port
- Orifice No: 11
- Orifice Capacity: 24 kW / 7 TR
- Operating Temperature Range: -40°C to +10°C
- Superheat Setting: Adjustable
- Static Superheat: 4 °C (7.2 °F)
- Capillary Tube Length: 1500 mm (59 inch)
- Flow Direction: Bi-flow (indicated by a direction arrow on the body)
- Body Material: Brass
- Connection Material: Copper
- Element Temperature Limit: 110 °C (230 °F)
- Maximum Working Pressure: 49 bar (711 psig)
- Serviceability: Not serviceable
- Accessories: Sensor strap included
Nominal Capacity (Under Standard Conditions)
- SI Values: Condensing: 38°C, Evaporating: 4.4°C, Liquid: 37°C
- Imperial Values: tcond = 100°F, tevap = 40°F, tliq = 98°F
Certificates and Compliance
- Approvals: UL, EAC, LLC CDC TYSK
- UL Approved Refrigerants: R134a, R513A
- PED Category: Art. 4, Par. 3
- EU RoHS Compliance: Yes, with exemption
- EU RoHS Exemption Code: 6(c)
- China RoHS: Out of scope
- SCIP Dossier No: d44ec740-dfe8-4c0a-9644-96406f010504
