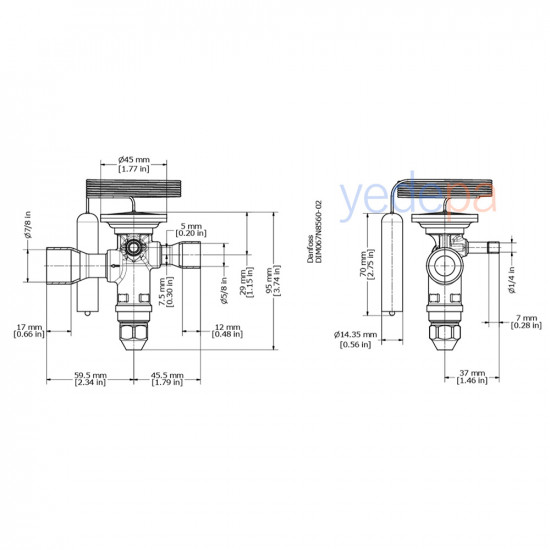

Danfoss TGE Thermostatic Expansion Valve - R134a / R513A, Externally Equalized, Balanced Port, 5/8" x 7/8" Solder, MOP 15°C - 17 kW - Part No: 067N5006

Product Description

Danfoss TGE 067N5006 is a 17 kW (4.5 TR) thermostatic expansion valve compatible with R134a and R513A refrigerants. With its balanced port and externally equalized design, it offers constant superheat control. It has solder (ODF) connections in 5/8" inlet and 7/8" outlet sizes. In addition, the MOP (Maximum Operating Pressure) point of this model is 15°C, providing an upper limit for compressor protection. A 1500 mm long capillary tube and a sensor strap are shipped with the product.

Technical Specifications

• Brand: Danfoss
• Model: TGE
• Part Number: 067N5006
• EAN: 5702428142885
• Refrigerants: R134a, R513A
• Connection Type: Solder (ODF), 5/8" inlet – 7/8" outlet
• Equalization Type: External Equalization (1/4" ODF)
• Port Design: Balanced port
• Orifice No: 8
• Orifice Capacity: 17 kW / 4.5 TR
• MOP Point: 15°C / 60°F (MOP 55 psig)
• Operating Temperature Range: -25°C to +10°C
• Superheat Setting: Adjustable
• Static Superheat: 4 °C (7.2 °F)
• Capillary Tube Length: 1500 mm (59 inch)
• Flow Direction: Bi-flow (direction arrow on the body)
• Body Material: Brass
• Connection Material: Copper
• Element Temperature Limit: 110 °C (230 °F)
• Maximum Working Pressure: 49 bar (711 psig)
• Serviceability: Not serviceable
• Accessories: Sensor strap included

Nominal Capacity (Under Standard Conditions)

• SI Values: tcond = 38°C, tevap = 4.4°C, tliq = 37°C
• Imperial Values: tcond = 100°F, tevap = 40°F, tliq = 98°F

Certificates and Compliance

• Approvals: UL, EAC, LLC CDC TYSK
• UL Approved Refrigerants: R134a, R513A
• PED Category: Art. 4, Par. 3
• EU RoHS Compliance: Yes, with exemption (6(c))
• China RoHS: Out of scope
• SCIP Dossier No: d44ec740-dfe8-4c0a-9644-96406f010504
