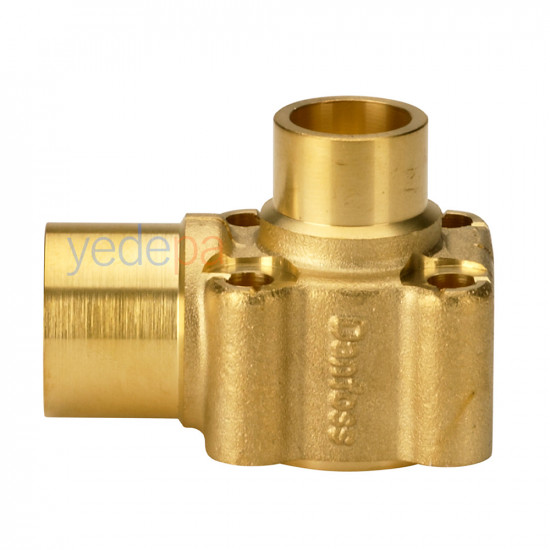

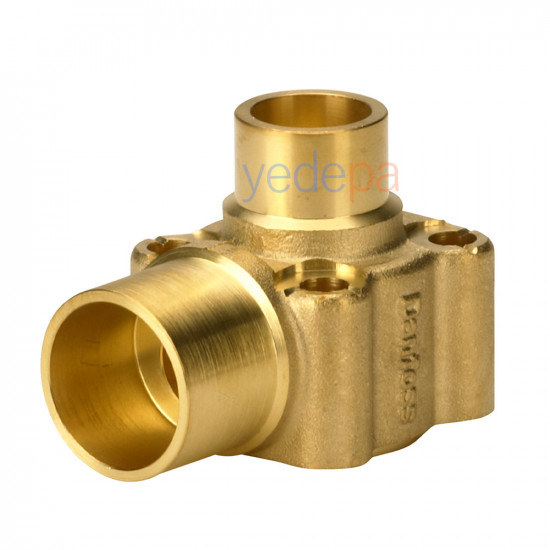

Danfoss TEH Expansion Valve Body - Solder, Angle Type, 5/8" x 7/8" ODF - Part No: 067B4011

Product Description

The Danfoss TEH 067B4011 model expansion valve body has been developed to be fully compatible with TE 5 series thermostatic expansion valves. Thanks to its solder ODF connections and angleway design, it offers compact and reliable installation in refrigeration systems. The single-flow design optimises flow control within the system. The product has a classic design without a balanced port and is an ideal spare part for maintenance work.

Technical Specifications

• Brand: Danfoss
• Model: TEH
• Part Number: 067B4011
• EAN: 5702428321150
• Purpose of Use: For use with the TE 5 expansion valve
• Connection Type: Solder (ODF)
• Inlet Connection Size: 5/8 inch
• Outlet Connection Size: 7/8 inch
• Flow Direction: Single-flow
• Direction: Angleway
• Port Design: Unbalanced (Balanced port: No)
• Body Material: Brass
• Service Status: Serviceable spare part
• Included Parts: Screw kit (screws and washers)
• Packaging Format: Multi-pack (32 pcs)

Compliance and Certificates

• Approvals: LLC CDC TYSK
• EU RoHS: Out of scope
• China RoHS: Out of scope
• REACH Compliance: Contains lead (CAS No. 7439-92-1)
• SCIP Dossier No: 7a4717a2-7803-4273-9d94-59ccfb927c1e

Areas of Use

This valve body is designed for use together with Danfoss TE 5 type expansion valves in commercial and industrial refrigeration applications. It offers a long-lasting and reliable solution in system maintenance and service work.
