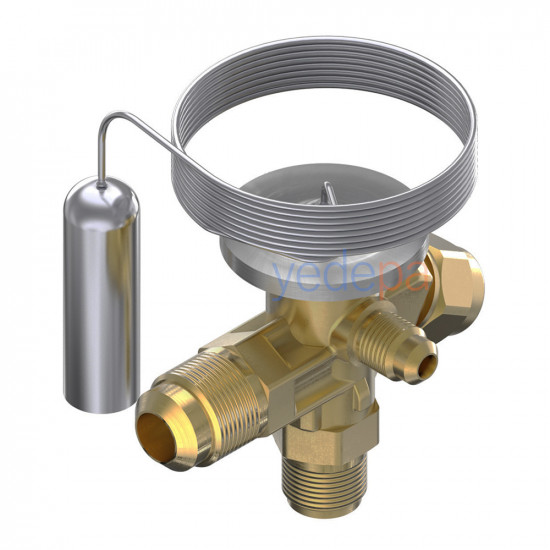

Danfoss TE 2 Thermostatic Expansion Valve - R404A / R507A, Externally Equalized, -40°C, 3/8" x 1/2" Flare - Part No: 068Z3407
Danfoss TE 2 Thermostatic Expansion Valve - R404A / R507A, Externally Equalized, -40°C, 3/8" x 1/2" Flare - Part No: 068Z3407

Danfoss TE 2 Thermostatic Expansion Valve - R404A / R507A, Externally Equalized, -40°C, 3/8" x 1/2" Flare - Part No: 068Z3407

  • Stock: In Stock
  • Brand: Danfoss
  • Model: 18.10.150
$72.09 (VAT incl.)
Ex Tax: $60.07
Fast Dispatch
Shipped from Türkiye by international express courier (see delivery page)
Secure Shopping
Your card details cannot be seen by anyone, including our staff.
Shipping
Your discounted shipping rate is calculated in the cart.

Product Description

The Danfoss TE 2 thermostatic expansion valve is an externally equalized expansion valve with MOP, compatible with R404A and R507A refrigerants. It performs effectively at evaporating temperatures from -40°C to -5°C. With its 0°C MOP point, it limits the maximum pressure in the system and improves compressor safety. It comes with 3/8" inlet and 1/2" outlet flare connections. With its 1500 mm long capillary tube and bulb strap, it offers complete ease of installation.

Technical Specifications

  • Brand: Danfoss
  • Model: TE 2
  • Part Number: 068Z3407
  • EAN: 5702422125235
  • Refrigerants: R404A, R507A
  • Connection Type: Flare, 3/8" inlet – 1/2" outlet
  • Equalization Type: External Equalization (1/4" flare)
  • Operating Temperature Range: -40°C to -5°C
  • MOP Point: 0°C (MOP 75 psig / 32°F)
  • Superheat Setting: Adjustable
  • Static Superheat: 4 °C (7.2 °F)
  • Capillary Tube Length: 1500 mm (59 inch)
  • Flow Direction: One-way (indicated by the arrow on the body)
  • Body Material: Brass
  • Maximum Working Pressure: 34 bar (500 psig)
  • Service Status: Serviceable (spare parts available)
  • Accessories: Bulb strap included

Nominal Capacity (Under Standard Conditions)

  • SI: OS = 6K, Tcondensing = 38°C, Tevaporating = 4.4°C, Tliquid = 37°C
  • Imperial: OS = 10.8°F, Tcond = 100°F, Tevap = 40°F, Tliq = 98°F

Certificates and Compliance

  • Approvals: EAC, LLC CDC TYSK
  • CE Compliance: Yes
  • PED Category: Article 4, Paragraph 3
  • EU RoHS Compliance: Yes (exemptions: 6(a), 6(c))
  • China RoHS: Above limit
  • SCIP Dossier No: c164ed45-f10d-4d73-9eae-355ccb479f4b
