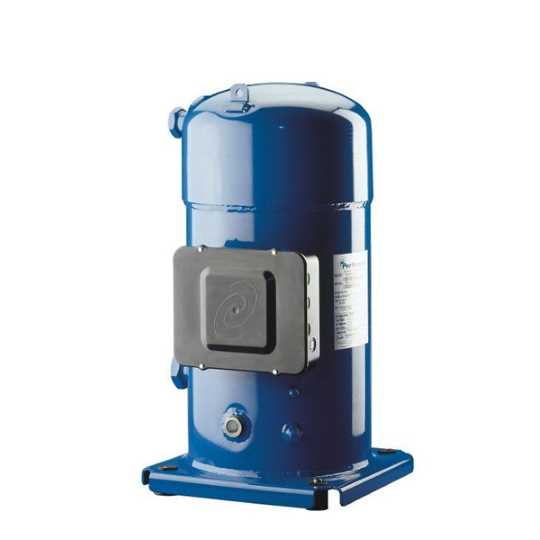

Danfoss SZ 161-4VAI Scroll Compressor (129,692 BTU)

Product Details

Place of Manufacture: France

Brand: Danfoss

Compressor Type: Scroll

Application Range: HBP (High Back Pressure) (+7.2°C / +54.4°C)

Compressor Power: 13 2/5 HP (Horse Power)

Power Supply: 380V

Refrigerant: R407C

Cooling Capacity: 38,007 Watt

Motor Type: 3 Phase

BOM. No: SZ 161-4VAI

Compressor Model: SZ 161-4VAI

Displacement: 216.60 cm³/revolution

Frequency: 50-60 Hz

Suction Line Diameter: 1 3/8 inch

Discharge Line Diameter: 7/8 inch

Product Description

Danfoss's SZ 161-4VAI model is a scroll compressor that provides high performance and efficiency. With 13 2/5 HP power and 38,007 Watt cooling capacity, this compressor has a wide range of uses. It is compatible with R407C refrigerant and can be used effectively in commercial refrigeration and air conditioning systems.

Applications

• Large-scale commercial refrigeration systems
• Air conditioning systems and heat pumps
• Ideal for medium and large-scale refrigeration applications

Warranty and Support

Danfoss compressors are known for their high quality and durability. The SZ 161-4VAI model comes with a 2-year international warranty. All your technical support and service needs are met through Danfoss's extensive authorised service network.
