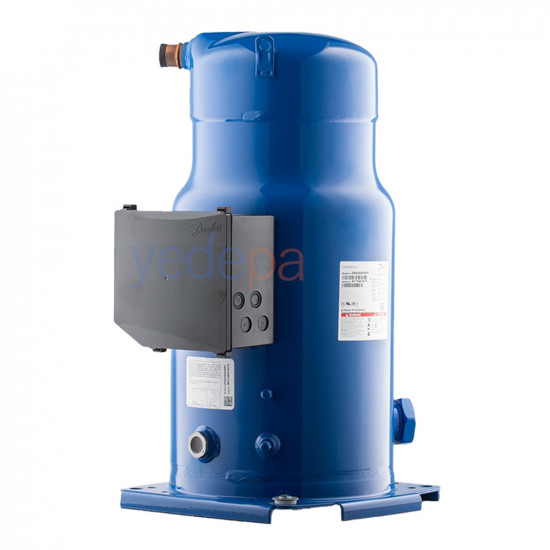

The Danfoss SH 240 is a 20 HP high back pressure (HBP) scroll compressor designed for industrial and commercial refrigeration systems. It runs on R410A refrigerant and offers 59,742 Watt (204,000 BTU) cooling capacity. Providing efficient and reliable performance with its 380-415V / 3 phase supply, it is used in high back pressure refrigeration applications.
The Danfoss SH240 model is a high-performance scroll compressor used in industrial and commercial refrigeration systems. With 20 HP power and 59,742 Watt (204,000 BTU) cooling capacity, it offers superior efficiency especially in high back pressure applications. This model is compatible with R410A refrigerant and provides reliable performance and energy savings.
Danfoss SH 240 Scroll Compressor offers high efficiency, reliable performance and durability in large-capacity refrigeration systems. With 204,000 BTU cooling capacity, it is an ideal solution for commercial and industrial applications.
The SH 240 model runs on R410A refrigerant. With 20 HP power it offers 59,742 Watt (204,000 BTU) cooling capacity and delivers efficiency in the HBP (High Back Pressure) operating range (+7.2°C / +54.4°C).
The power supply is 380-415V / 3 phase / 50-60Hz. The running current (RLA) is 36.4 A and the starting current (LRA) is 215 A. These values must be taken into account when selecting the wiring and protection devices.

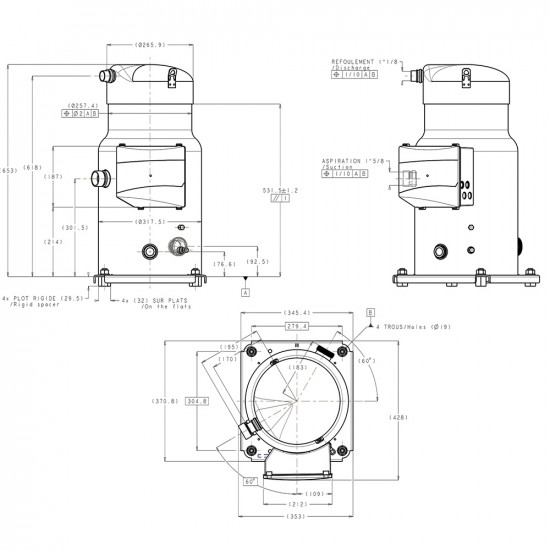

The suction line diameter is 1 5/8 inch and the discharge line diameter is 1 1/8 inch. The displacement is 227.60 cm³ per revolution. The maximum pressure is specified as 48.7 bar on the high side and 31.1 bar on the low side.
It is a scroll type compressor and is manufactured in France. Its net weight is 107 kg and its gross weight is 112.35 kg; it is used in industrial and commercial refrigeration systems, especially in high back pressure applications.
