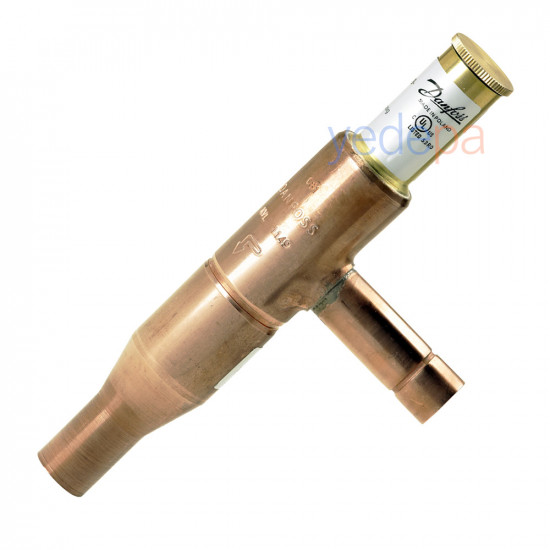

Danfoss KVC 22 Hot Gas Bypass Regulator – 7/8" ODF Solder Connection, 0.2-6 bar Setting Range

Product Description

The Danfoss KVC 22 hot gas bypass regulator is designed to ensure stable compressor operation when the evaporator load is low. With its pressure adjustable in the 0.2 - 6 bar range and high reliability, it offers an effective solution in commercial and industrial refrigeration systems.

Technical Specifications

• Product Code: 034L0144
• Connection Type: Solder (ODF)

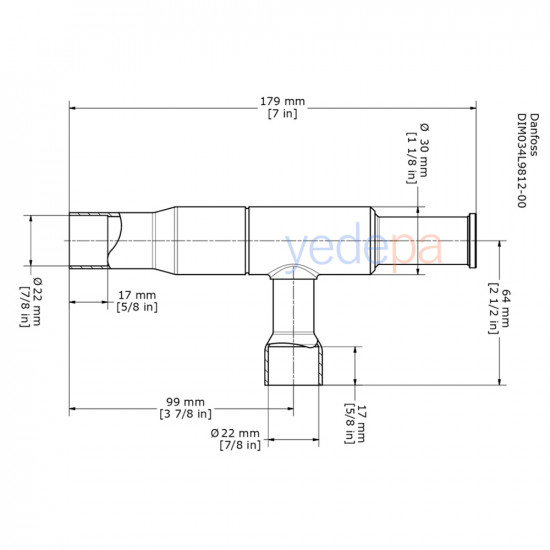

• Inlet - Outlet Size: 7/8 inch (22 mm)
• Setting Pressure Range: 0.2 – 6 bar
• Factory Setting: 2 bar (29 psig)
• Kv Value: 1.85 m³/h
• Cv Value: 2.14 gal/min
• Maximum Working Pressure: 28 bar (406 psig)
• Maximum Test Pressure: 31 bar (450 psig)
• Ambient Temperature Range: -45°C to +130°C
• Flow Direction: In the direction of the arrow on the body

Refrigerant Compatibility

The KVC 22 is fully compatible with commonly used HFC and HFO refrigerants such as R134a, R22, R404A, R407C, R448A, R449A, R452A, R507A and R513A.

Performance Values

• R404A / R507A: 17.4 kW (5.04 TR)
• R134a: 12 kW (3.41 TR)
• R22: 19.1 kW (5.35 TR)
• R407C: 21 kW (5.78 TR)

General Features

• Origin: Danfoss – Original Product
• Approvals: UL, CE, EAC, RoHS
• EAN Code: 5702428411479
