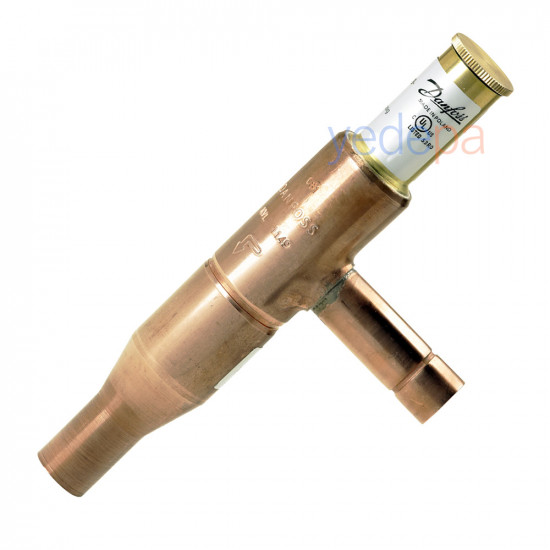

Danfoss KVC 15 Hot Gas Bypass Regulator – 5/8" ODF Solder Connection, 0.2-6 bar Setting Range

Product Description

The Danfoss KVC 15 hot gas bypass regulator is developed to ensure safe and efficient compressor operation under low evaporator load conditions. With its control pressure adjustable in the 0.2 - 6 bar range, it offers stable performance in commercial and industrial refrigeration systems.

Technical Specifications

• Product Code: 034L0147
• Type: KVC 15
• Connection Type: Solder (ODF)

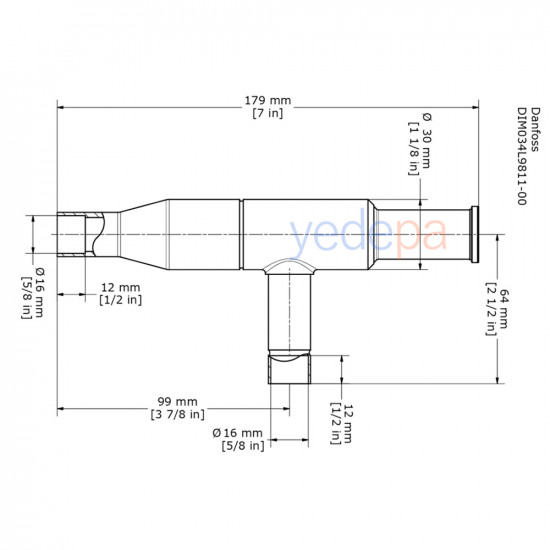

• Connection Size (Inlet / Outlet): 5/8 inch (16 mm)
• Setting Pressure Range: 0.2 – 6 bar
• Factory Setting: 2 bar (29 psig)
• Kv Value: 1.25 m³/h
• Cv Value: 1.44 gal/min
• Maximum Working Pressure: 28 bar (406 psig)
• Maximum Test Pressure: 31 bar (450 psig)
• Operating Temperature Range: -45°C to +130°C

Suitable Refrigerants

The KVC 15 regulator is compatible with commonly used HFC, HFO and hydrocarbon refrigerants such as R134a, R22, R404A, R407C, R448A, R449A, R507A and R513A.

Cooling Capacities

• R404A / R507A: 13.6 kW (3.93 TR)
• R134a: 9.4 kW (2.65 TR)
• R22: 14.9 kW (4.17 TR)
• R407C: 16.4 kW (4.5 TR)

General Features

• Approvals: UL, CE, EAC, RoHS
• Serviceability: Yes (spare parts support)
• EAN Code: 5702428411448
