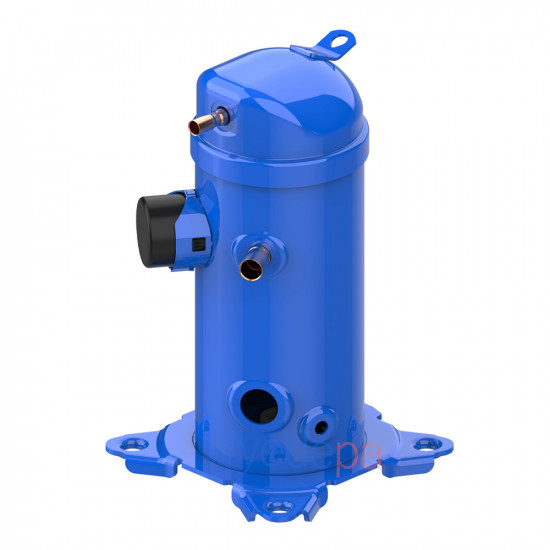

Danfoss HRH036U4LP6 Scroll Compressor | 3 HP | 30,095 BTU/h Cooling Capacity | R410A Compatible | 121L1201

Compact Design, Powerful Performance – R410A Compatible Scroll Compressor

Danfoss HRH036U4LP6 Scroll Compressor is a reliable solution specially designed for small and medium-sized air conditioning systems, with 3 HP power and 30,095 BTU/h (approximately 8,820 W) cooling capacity. Compatible with R410A refrigerant, this hermetic scroll compressor provides high efficiency and low vibration with its fixed-speed design. Thanks to its compact design, it can easily be used in applications with limited space.

Basic Technical Specifications

• Model: HRH036U4LP6 (121L1201)
• Cooling Capacity: 30,095 BTU/h (~8,820 W)
• Nominal Power: 3 HP
• Displacement: 34.74 cm³
• Refrigerant: R410A
• Frequency: 50 / 60 Hz
• Compressor Type: Hermetic Scroll
• Capacity Control: Fixed speed

Electrical Specifications

• Voltage: 380–415V / 3 Phase / 50 Hz – 460V / 3 Phase / 60 Hz
• LRA (Locked Rotor Current): 45 A
• RLA (Rated Load Current): 6.4 A
• MCC: 10 A
• Motor Protection: Internal overload protection
• Winding Resistances (Ohm): 1-2: 4.66 | 1-3: 4.66 | 2-3: 3.42

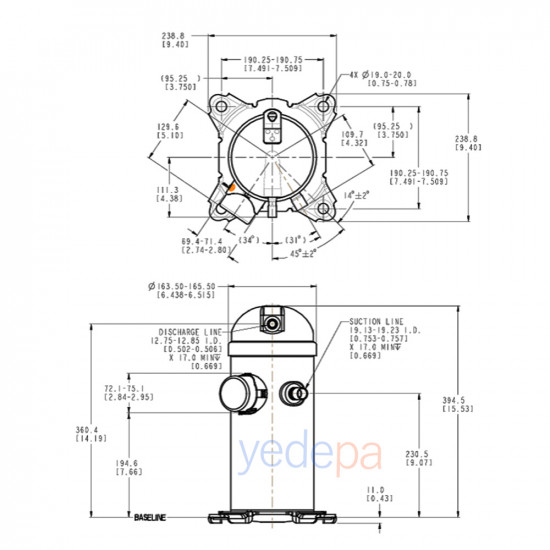

Physical Specifications and Connections

• Total Height: 413 mm
• Diameter: 165 mm
• Width / Length: 239 mm
• Net Weight: 30.5 kg
• Gross Weight: 34.5 kg
• Volume: 0.1 m³
• Connection Type: Brazed (ODF)
• Suction Line: 3/4 inch (250 mm height)
• Discharge Line: 1/2 inch (379 mm height)

Lubrication and Material Information

• Oil Type: PVE (320HV)
• Oil Quantity: 1.06 L
• Viscosity: 68 cP
• IP Protection Class: IP22

Pressure and Operating Limits

• Maximum High Pressure (PS): 46.1 bar
• Maximum Low Pressure (PS): 31.1 bar

Compliance and Certificates

• CE and UL Certified
• EU & China RoHS: Compliant (with exemptions)
• WEEE Scope: Excluded

Application Areas

HRH036U4LP6 Scroll Compressor is ideal for use in the following areas:

• Compact commercial air conditioning systems
• Split and mini VRF units
• Rooftop and central systems running on R410A refrigerant
• HVAC applications where energy efficiency is a priority

Product Identity

• EAN: 5702424064181
• Drawing No: 0XC6301B-2
• Product Group: Hermetic Compressors
• Series: HRH

Efficient Cooling with the Danfoss HRH Series

Danfoss HRH036U4LP6 offers long-lasting and safe cooling performance for businesses with its low noise level, compact dimensions and fixed-speed scroll technology. It provides maximum efficiency especially in R410A refrigerant systems.

Frequently Asked Questions

Which systems is the Danfoss HRH036U4LP6 scroll compressor suitable for?

The HRH036U4LP6 is a fixed-speed hermetic scroll compressor designed for small and medium-sized air conditioning systems. Thanks to its compact structure, it can also be used in applications with limited space.

What are the cooling capacity and refrigerant compatibility of the HRH036U4LP6 compressor?

Its cooling capacity is 30,095 BTU/h (approximately 8,820 W), its nominal power is 3 HP and it is compatible with R410A refrigerant. The maximum high pressure (PS) value is 46.1 bar.

What is the original (OEM) code of the Danfoss HRH036U4LP6 compressor?

The original code is 121L1201; the Yedepa product code is 16.45.036.

What are the electrical values of the HRH036U4LP6 compressor?

The voltage range is 380–415V / 3 phase / 50 Hz or 460V / 3 phase / 60 Hz. The rated load current (RLA) is 6.4 A, the locked rotor current (LRA) is 45 A, and the motor has internal overload protection.
