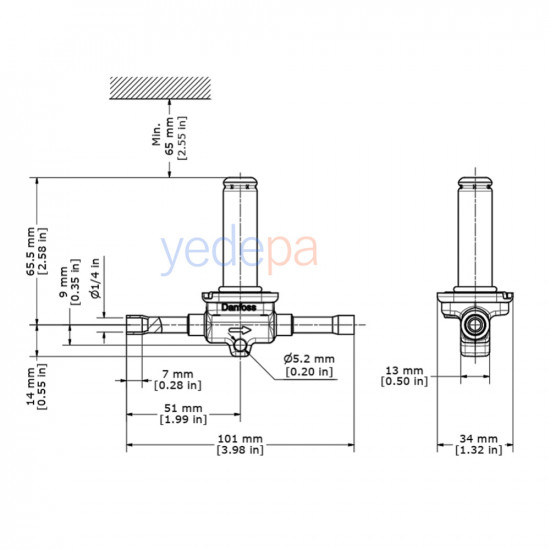

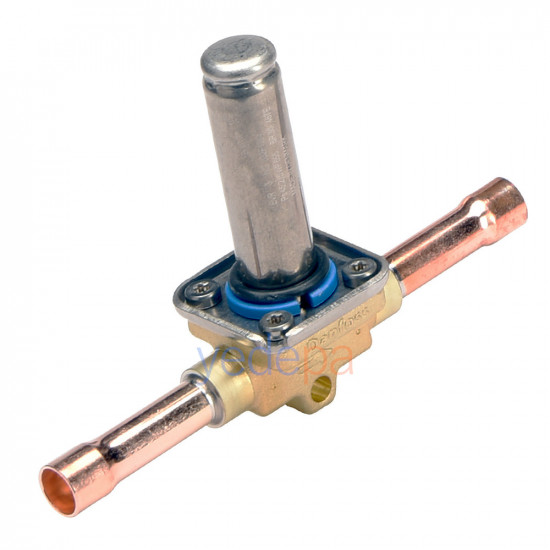

Danfoss EVR 3 Solenoid Valve - NC, Solder ODF, 1/4 in - Brass Body - Part No: 032F1206

Product Description

The Danfoss EVR 3 solenoid valve is a direct-acting, normally closed (NC) valve with a 1/4 inch solder (ODF) connection. With its compact design and brass body, it delivers high performance. With a Kv value of 0.27 m³/h and working pressure up to 45.2 bar, it can be used reliably in commercial and industrial refrigeration systems. It is compatible with a wide range of refrigerants such as R32, R134a, R404A, R410A.

Technical Specifications

• Brand: Danfoss
• Model: EVR 3
• Part Number: 032F1206
• EAN: 5702422021995
• Function: NC (Normally Closed)
• Operation Type: Direct-acting
• Connection Type: Solder, ODF
• Connection Size: 1/4 inch (Inlet / Outlet)
• Body Material: Brass
• Orifice Diameter: 3.3 mm
• Kv Value: 0.27 m³/h
• Cv Value: 0.31 gal/min
• Max. Working Pressure: 45.2 bar (PED compliant: 49 bar)
• MOPD (10W AC): 38 bar
• Actuator Diameter: 13.5 mm
• Ambient Temperature: -40°C to +80°C
• Media Temperature: -40°C to +105°C (Defrost max. 130°C)
• Manual Operation: No
• Service Status: Spare parts available

Compatible Refrigerants

The EVR 3 model is fully compatible with the following UL-approved and commonly used refrigerants:

• R134a, R404A, R410A, R407C, R407F, R407H, R507A, R22, R32, R125, R152a, R1234ze(E)
• R290, R600, R600a, R438A, R422A/B/D, R448A, R449A/B, R450A, R452A/B, R513A/B, R515A/B
• R417A, R442A, R447A/B, R454A/B/C, R455A, R463A, R512A, R516A

Certificates and Compliance

• Approvals: EAC, LLC CDC TYSK
• CE Assessment: Yes
• PED Category: Article 4, paragraph 3
• EU RoHS Compliance: Yes, exemptions: 6(a), 6(c)
• China RoHS: Limit exceeded
• SCIP Dossier No: 52f475eb-6026-442a-932e-863e4660eac8
