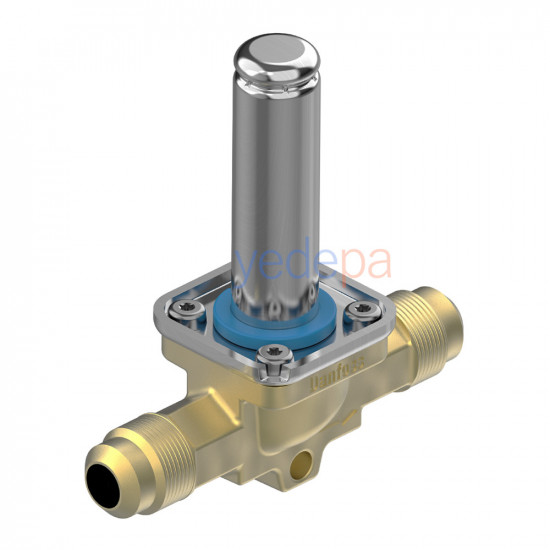

Danfoss EVR 3 Solenoid Valve - NC, Flare, 3/8 in - Brass Body - Part No: 032F8116

Product Description

Danfoss EVR 3 solenoid valve is a direct-acting, normally closed (NC) valve with a 3/8 inch flare connection. Thanks to its compact brass body design, it is widely used in commercial refrigeration and air conditioning systems. With a 0.27 m³/h Kv value, a 3.3 mm orifice diameter and a design rated up to 45.2 bar, it delivers safe and efficient performance. It is compatible with a wide range of refrigerants.

Technical Specifications

• Brand: Danfoss
• Model: EVR 3
• Part Number: 032F8116
• EAN: 5702428093583
• Function: NC (Normally Closed)
• Operation Type: Direct-acting
• Connection Type: Flare
• Connection Size: 3/8 inch (10 mm - Inlet/Outlet)
• Body Material: Brass
• Orifice Diameter: 3.3 mm
• Kv Value: 0.27 m³/h
• Cv Value: 0.31 gal/min
• Maximum Working Pressure: 45.2 bar
• MOPD (10W AC): 38 bar
• Actuator Diameter: 13.5 mm
• Ambient Temperature: -40°C to +80°C
• Medium Temperature: -40°C to +105°C (Defrost max. 130°C)
• Manual Operation: None
• Serviceability: Spare parts available

Compatible Refrigerants

The EVR 3 flare model is compatible with the following common, UL-approved refrigerants:

• R134a, R404A, R410A, R407C, R407F, R407H, R507A, R22, R32, R125, R152a, R1234yf, R1234ze(E)
• R438A, R422A/B/D, R448A, R449A/B, R450A, R452A/B, R513A/B, R515A/B, R417A, R442A, R447A/B
• R454A/B/C, R455A, R463A, R512A, R516A, R600, R600a, R444B

Certificates and Compliance

• Approvals: EAC, LLC CDC TYSK
• CE Assessment: Yes
• PED Category: Article 4, paragraph 3
• EU RoHS Compliance: Yes, exemptions: 6(a), 6(c)
• China RoHS: Above limit
• SCIP Dossier No: 52f475eb-6026-442a-932e-863e4660eac8
