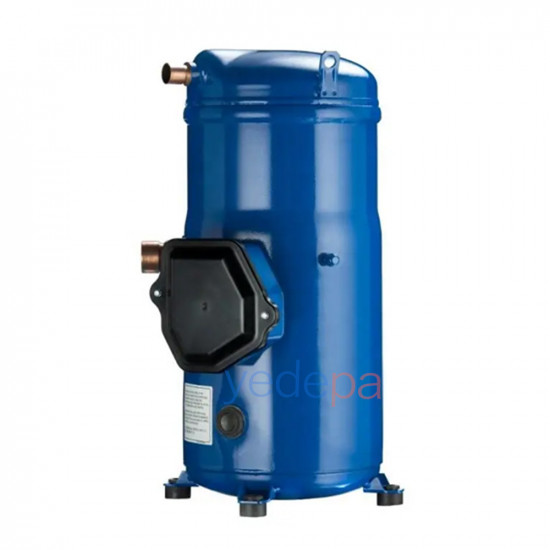

The Danfoss DSH295B4APC Scroll Compressor is a fixed-speed hermetic compressor compatible with R410A refrigerant, with a power rating of 25 HP and a cooling capacity of 220,149 BTU/h (approximately 64,520 W), suitable for tandem connection. It offers high performance and reliability, especially in commercial and industrial air conditioning systems. Suitable for a 380-415V/3/50Hz or 460V/3/60Hz power supply, this model ensures safe operation with its IP54 protection class and electronic motor protection module.
The Danfoss DSH295B4APC can be used reliably in the following applications:
The Danfoss DSH295B4APC Scroll Compressor is an ideal choice for air conditioning and refrigeration systems that require high capacity. With its tandem-compatible design, electronic protection features and environmentally friendly refrigerant options, it combines system safety and energy efficiency.
This product is compatible with the brands and models below. To avoid ordering the wrong part, verify the brand/model of your appliance; if you are not sure, ask for confirmation using the product/part code.
| Brand | Compatible Model / Series |
|---|---|
| Danfoss | DSH295B4APC |
| Yedepa Product Code | 16.49.295 |
| Equivalent / Original Code | 120H1370 |
| Cooling Capacity | 220,149 BTU/h (64,520 W) |
| Nominal Power | 25 HP |
| Displacement | 276.5 cm³ |
| Maximum High Pressure | 48.7 bar |
It is a fixed-speed hermetic scroll compressor designed for commercial and industrial air conditioning systems, with a nominal power of 25 HP and a cooling capacity of 220,149 BTU/h (64,520 W). The Danfoss original code is 120H1370 and the Yedepa product code is 16.49.295.
It is compatible with R410A and can also work with R452B and R454B refrigerants. The maximum high pressure value is 48.7 bar.
Yes, it is suitable for tandem connection. The oil equalization connection is a 2-1/4" Rotolock and the oil drain connection is a 1/4" flare.
It operates on a 380-415V/3 phase/50Hz or 460V/3 phase/60Hz supply. It has IP54 protection and a 110/240 V electronic motor protection module, and is CE and UL certified.
