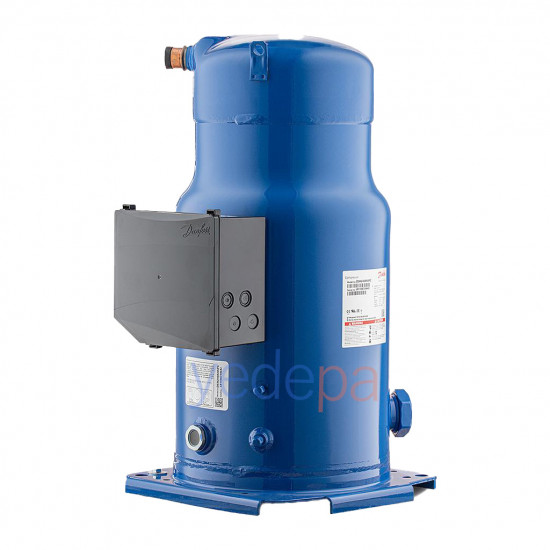

The Danfoss DSH161A4ALD Scroll Compressor is a fixed-speed hermetic compressor fully compatible with R410A refrigerant, with a nominal power of 13 HP and a cooling capacity of 119,059 BTU/h (approximately 34,894 W). Thanks to its tandem mounting support, it is an ideal solution for high-capacity air conditioning and refrigeration systems where several compressors need to be used together.
The Danfoss DSH161A4ALD can be used reliably in the following systems:
With its 13 HP power, 119,059 BTU/h cooling capacity, tandem compatibility and environmentally friendly R410A support, the Danfoss DSH161A4ALD Scroll Compressor is an ideal solution for commercial air conditioning systems. With its compact design and high reliability, it ensures efficient operation for many years.
This product is compatible with the brands and models below. To avoid ordering the wrong part, verify the brand/model of your appliance; if you are not sure, ask for confirmation using the product/part code.
| Brand | Compatible Model / Series |
|---|---|
| Danfoss | DSH161A4ALD |
| Yedepa Product Code | 16.49.161 |
| Equivalent / Original Code | 120H1551 |
| Cooling Capacity | 119,059 BTU/h (≈34,894 W) |
| Nominal Power | 13 HP |
| Refrigerant | R410A |
| Supply Voltage | 380-415V/3/50Hz – 460V/3/60Hz |
The DSH161A4ALD is a fixed-speed hermetic scroll compressor with a nominal power of 13 HP and a cooling capacity of 119,059 BTU/h (approximately 34,894 W). It is used in high-capacity air conditioning and refrigeration systems, especially in tandem installations where several compressors work together.
The Danfoss original code is 120H1551; the Yedepa product code is 16.49.161.
It is fully compatible with R410A refrigerant and operates as a 3-phase unit on a 380-415V/3/50Hz – 460V/3/60Hz supply. The rated load current (RLA) is 25 A and the locked rotor current (LRA) is 158 A.

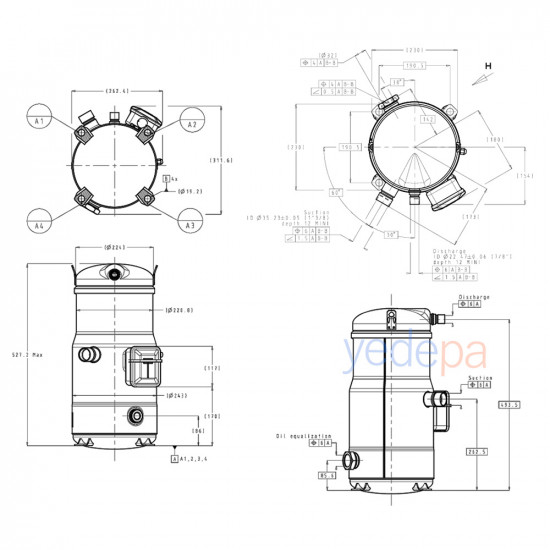

Yes, it is compatible with tandem use, and the oil equalization connection is a 1-3/4 inch Rotolock. It has a brazed (ODF) connection type; the suction line is 1 3/8 inch and the discharge line is 7/8 inch.
