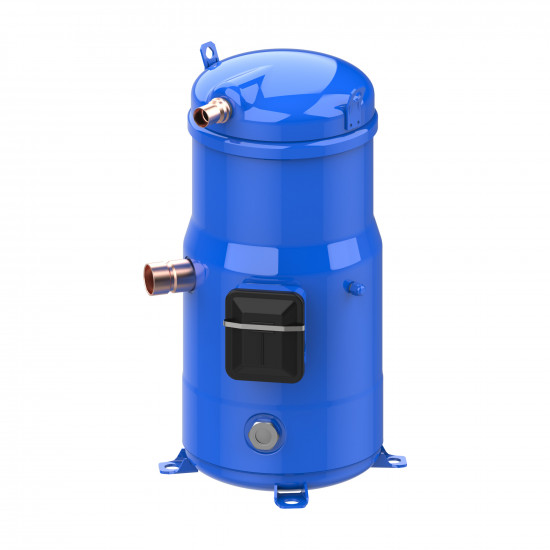

Danfoss DSH140A4ALD Scroll Compressor (120H1541) | 12 HP | 103,621 BTU/h Cooling Capacity | R410A / R452B / R454B | 3 Phase 380-415V

Designed for commercial air conditioning, rooftop, chiller and heat pump systems, the Danfoss DSH140A4ALD is a fixed-speed Performer scroll compressor (Danfoss code: 120H1541). With a 133 cm³ swept volume and 12 HP power, it delivers at 50 Hz 103,621 BTU/h (30,370 W / 30.4 kW) of nominal cooling capacity. In addition to R410A, it also works with the low-GWP alternatives R452B and R454B; it is charged with POE oil.

R410A Scroll Compressor — 12 HP / 103,621 BTU/h

Danfoss Performer DSH series scroll compressors offer few moving parts, low vibration and high seasonal efficiency. With an internal overload protector, a wide operating envelope and brazed (ODF) connections, they are reliable and service friendly. The DSH140 is also used in Danfoss ready-made tandem and trio combinations: DSH280E (2×DSH140), DSH420T (3×DSH140), DSH230U (DSH090+DSH140), DSH260U (DSH140+DSH120), DSH301U (DSH161+DSH140) and DSH324U (DSH140+DSH184).

Key Features

• Scroll technology — few parts, low vibration, high efficiency
• COP 3.12 at 50 Hz (R410A, te +5 °C / tc +50 °C)
• Fixed speed; internal overload protector
• R410A, R452B, R454B compatible (max. charge 10 kg)
• 380-415V / 3 phase / 50Hz (and 460V/3/60Hz) three-phase supply
• IP54 (with cable gland); CE, UL, UKCA approved

Technical Specifications

• Brand / Model: Danfoss Performer / DSH140A4ALD (DSH140-4), Danfoss code: 120H1541
• Type: Scroll, fixed speed
• Application: Air conditioning / rooftop / chiller / heat pump
• Nominal Power: 12 HP (12 horsepower) · Danfoss nominal 12 TR
• Cooling Capacity (R410A, 50 Hz): 30,370 W (103,621 BTU/h) @ te +5 °C / tc +50 °C, 10 K superheat
• Cooling Capacity (R410A, 60 Hz): 41,510 W (141,631 BTU/h) @ te +7.2 °C / tc +54.4 °C
• Power Input / Efficiency (50 Hz): 9.74 kW · COP 3.12 · EER 10.64
• With Other Refrigerants (50 Hz): R452B 30,180 W (102,974 BTU/h) · R454B 29,879 W (101,946 BTU/h)
• Swept Volume: 133 cm³ · 23.1 m³/h (50 Hz, 2900 rpm) · 27.9 m³/h (60 Hz, 3500 rpm)
• Compatible Refrigerants: R410A, R452B, R454B (max. charge 10 kg)
• Supply: 380-415V/3/50Hz and 460V/3/60Hz
• Current: RLA 21.4 A / MCC 30 A / LRA (starting) 147 A / max. operating 28 A; winding resistance 0.92 Ω
• Motor Protection: Internal overload
• Oil: POE 160SZ, 3.3 L (viscosity 32 cP)
• Connection: Suction 1 3/8 inch ODF (brazed), discharge 7/8 inch ODF (brazed)
• Pressure: High side max. 48.7 bar; low side max. 33.3 bar (R410A) / 31.2 bar (R452B, R454B)
• Operating Envelope: High side -35 / +150 °C; low side -35 / +55 °C
• Max. Starts: 12 starts/hour

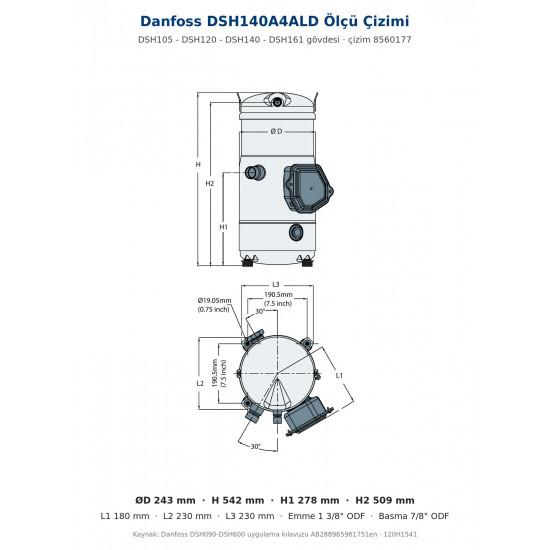

• Dimensions: Diameter 243 mm, overall height 542 mm (length 230 mm, width 230 mm) · Danfoss drawing no. 8560177
• Weight: Net 68.88 kg (gross 71.38 kg)
• Internal Free Volume: Low pressure side 13.6 L, high pressure side 0.7 L
• Protection Class: IP54 (with cable gland)
• Approvals: CE, UL, UKCA

Technician's Tips

• Braze the 1 3/8 inch suction and 7/8 inch discharge ODF connections under nitrogen to prevent internal oxidation (critical for scroll).
• R410A is a high-pressure refrigerant; make sure your gauges, hoses and vacuum equipment are R410A compatible.
• POE oil absorbs moisture; keep the compressor sealed until installation and evacuate the system thoroughly before commissioning.
• Scroll rotation direction is critical: verify the phase sequence at first start-up; Danfoss strongly recommends a phase sequence protection relay for the DSH090-184.
• For a tandem installation, use Danfoss's ready-made tandem kit and oil equalization line; mount the compressors at the same level.
