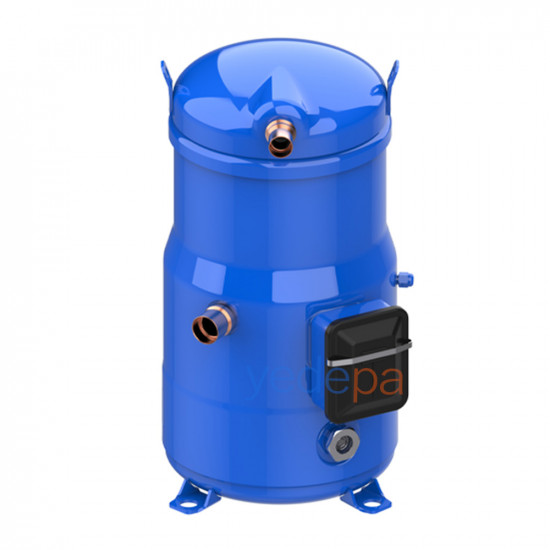

Danfoss DSH090A4ALD 120H1511 Scroll Compressor | 7.5 HP | 68,402 BTU/h (20,048 W) | R410A | 3 Phase

Product Features

• Country of Manufacture: France
• Brand: Danfoss
• Compressor Type: Scroll
• Operating Range: HBP (+7.2°C / +54.4°C)
• Power Supply: 380V
• Refrigerant: R410A
• Cooling Capacity: 20,048 W (68,402 BTU/h) — R410A, 50 Hz
• Nominal Power: 7.5 HP
• Motor Type: 3 PHASE

Technical Details

• Displacement (cm³/rev): 88.4
• Frequency (Hz): 50-60
• Suction Line: 1 1/8"
• Discharge Line: 7/8"

Electrical Specifications

• Speed at 50 Hz: 2900 rpm
• Speed at 60 Hz: 3500 rpm
• Nominal Voltage Range at 50 Hz: 380 V - 415 V
• Nominal Voltage at 60 Hz: 460 V

Manufactured by Danfoss in France, the DSH090A4ALD scroll compressor meets the needs of modern refrigeration systems by delivering high performance and energy efficiency. Compatible with R410A refrigerant, this unit provides reliable cooling solutions over a wide operating range.
