Danfoss 032L1244 EVR 20 Solenoid Valve 1 1/8" Solder

For fluid control in refrigeration and air conditioning installations, the Danfoss 032L1244 EVR 20 Solenoid Valve is a normally closed (NC) magnetic valve mounted directly in the pipe line with its 1 1/8" solder (brazed) copper connection. Thanks to its brass body and stainless steel armature tube, it offers reliable opening and closing performance in the refrigerant circuit.

Reliable Flow Control and Durable Brass Body

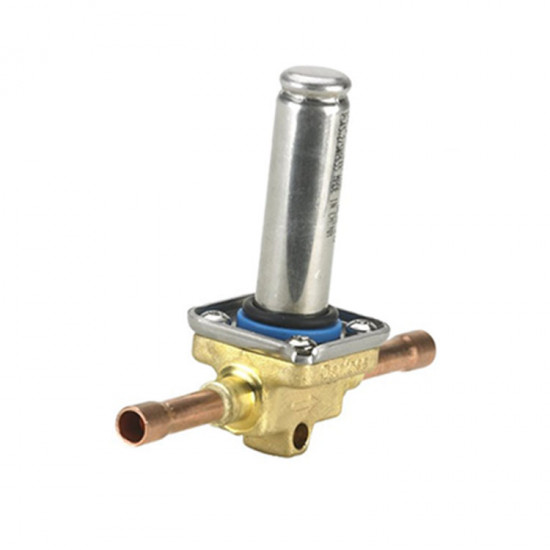

EVR series solenoid valves allow the fluid in the liquid and gas lines of refrigeration systems to pass when the coil is energized and stop the flow when the power is cut. Thanks to the two lateral copper solder ends seen in the image, it is connected to the piping by brazing, ensuring leak-tightness. The arrow on the body indicates the flow direction for correct installation. The coil is obtained separately and fitted onto the stainless armature tube.

Key Technical Features

The basic technical information for the product is listed below.

• Brand: Danfoss
• Product Code: 032L1244
• Type / Model: EVR 20 (19.30.109)
• Connection Type: 1 1/8" solder / brazed (copper)
• Operation: Normally closed (NC), servo-operated
• Body Material: Brass
• Armature Tube: Stainless steel
• Sealing: Magnetic armature with O-ring seal
• Area of Use: Refrigeration, air conditioning and heat pump installations
