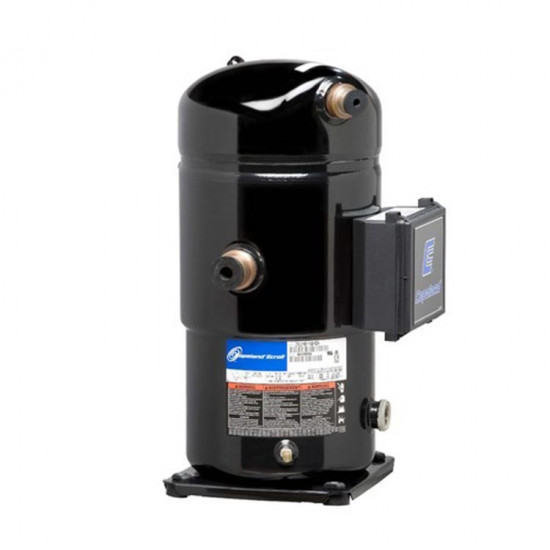

Copeland ZP385KCE-TWD-951 Scroll Compressor – 30 HP / 316,000 BTU, R410A (Service Version, IP54)

Manufactured under the Emerson Climate Technologies brand, the Copeland Scroll Compressor ZP385KCE-TWD-951 is specially designed for R410A refrigerant. Suitable for high back pressure (HBP) applications, this model provides high efficiency and reliability in commercial refrigeration systems.

General Features

• Refrigerant Type: R410A (HFC refrigerant)
• Cooling Efficiency (EER): 11.1
• Capacity Range: 316,000 BTU

Physical and Electrical Specifications

• Voltage: 380-420V / 50Hz
• Phase: 3 Phase
• Displacement: 60.8 m³/hour @ 50Hz
• Net Weight: 178kg
• Dimensions: 448mm (L) x 392mm (W) x 715mm (H)

Connections and Additional Features

• Connection Sizes: Suction connection 1 5/8", discharge connection 1 3/8"
• Copper brazed connections
• Mounting parts included

The ZP385KCE-TWD-951 model is a high-capacity and energy-efficient solution ideal for commercial refrigeration systems. Manufactured by Emerson Climate Technologies, this high-quality compressor can handle significant cooling loads and offers reliable performance across a wide range of applications.

BOM 951 — Service Version

This unit is Copeland's BOM 951 configuration: it is defined in the application guide as "ZP235KCE - ZP485KCE service version" and comes with an IP54 protected terminal box. The service version is prepared so that it can be used in place of the other BOM configurations of the series.

• Copeland Part No: 8065903
• Capacity: 316,000 BTU/h (92,610 W) — 50 Hz, AHRI condition
• Displacement: 349.4 cm³/rev (60.8 m³/hour)
• Oil: 6.30 L POE — Net Weight: 177 kg

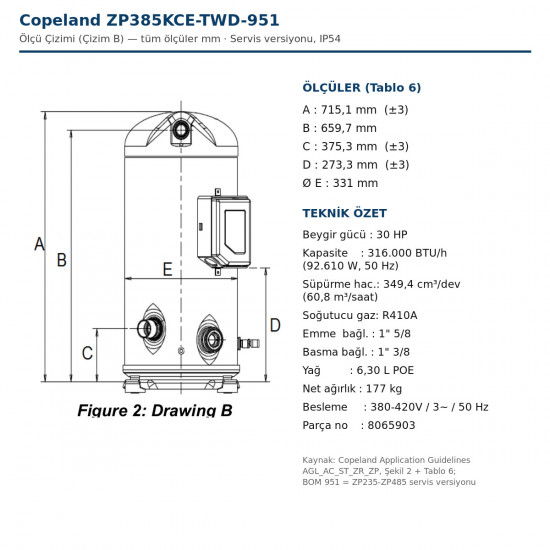

• Dimensions: 715.1 × 659.7 × 375.3 mm (Drawing B); body diameter Ø 331 mm
