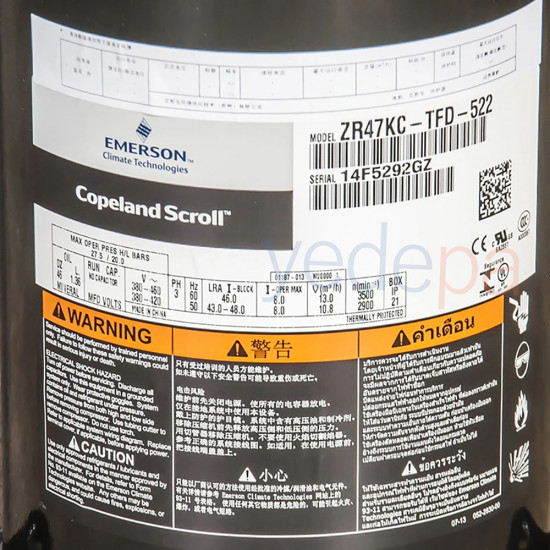

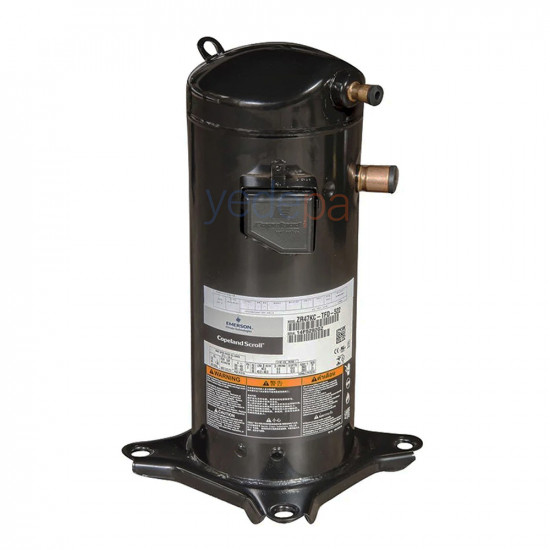

Copeland ZR47KC-TFD-522 4 HP Scroll Compressor

Product Features

• Horsepower (HP): 3.9 HP
• Refrigerant: R22
• Voltage: 380-420V (50 Hz)
• Cooling Capacity: 47,500 BTU/h (13,900 Watt)
• Input Power: 4,130 Watt
• Current: 6.1 Amperes
• Coefficient of Performance (COP): 3.37 W/W
• Energy Efficiency Ratio (EER): 11.5 Btu/Wh
• Displacement: 64.2 cc/rev
• Oil Quantity: 1.36 liters
• Locked Rotor Amperes (LRA): 46.0 Amperes
• Sound Pressure Level: 60.0 dBA at 1 meter
• Net Weight: 28.1 kg

Product Description

The Copeland ZR47KC-TFD-522 is a highly efficient and reliable scroll compressor designed for air conditioning applications. This compressor is compatible with R22 refrigerant and offers a cooling capacity of 47,500 BTU/h (13,900 Watt), making it an ideal solution for medium and large-scale air conditioning applications.

With a motor power of 3.9 HP, this compressor draws 6.1 amperes at rated load and 46.0 amperes at start-up. It operates at 380-420V and 50Hz, and 460V and 200-230V (60 Hz) options are also available.

Thanks to its scroll design, it runs more quietly, and because it has fewer moving parts, its maintenance requirements are low. It offers high efficiency, minimizes energy consumption and has an EER value of 11.5. With a displacement of 64.2 cc/rev, it delivers high performance. It has an oil capacity of 1.36 liters.

The Copeland ZR47KC-TFD-522 offers a reliable and efficient solution for commercial and industrial air conditioning systems. With its robust design and high performance, it delivers superior results in various applications.

Features

• Design: Scroll design provides quieter operation and lower maintenance requirements.
• Efficiency: Offers high efficiency in air conditioning applications.
• Durability: A cost-effective solution with its long service life and durability.
• Sound Level: Low sound level provides a quieter operating environment.
