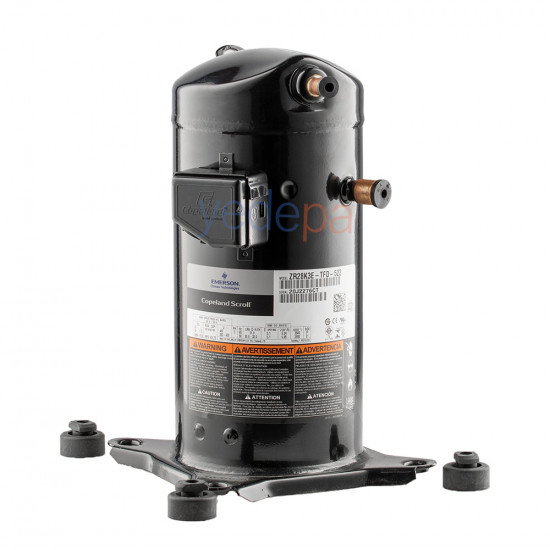

Copeland ZR28K3E-TFD-522 Scroll Compressor – 2.5 HP / 23,600 BTU, R22 / R407C

Product Features

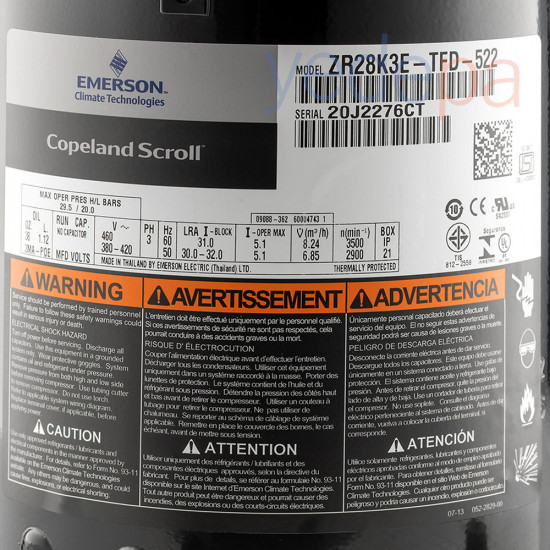

• Model Number: ZR28K3E-TFD-522
• Copeland Part No: 8809336 / 8400148
• Refrigerant: Compatible with R407C and R134a; R22 for air conditioning applications
• Voltage and Frequency: 380-420 V (50 Hz), 460 V (60 Hz)
• Phase: 3-phase power supply
• Displacement: 6.83 m³/h
• Nominal Motor Power: 2.5 HP
• Oil Charge: 1.12 liters POE
• Sound Pressure Level: 54 dB

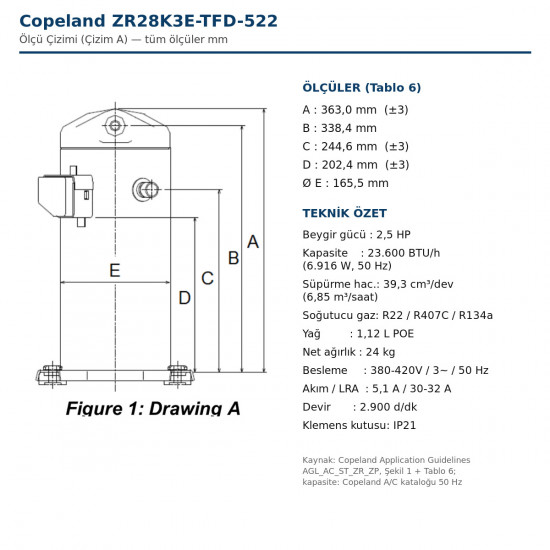

• Gross/Net Weight: 29/25 kg
• Connection Type: Tube Connection

Product Description

The Copeland ZR28K3E-TFD-522 is a scroll compressor designed for air conditioning and refrigeration applications. It offers high efficiency and reliability.

Operating at 380-420 V (50 Hz) and 460 V (60 Hz), this compressor is compatible with a 3-phase power supply. With a nominal motor power of 2.5 HP, this compressor has a displacement of 6.83 m³/h.

Compatible with R407C and R134a refrigerants, this compressor is also suitable for air conditioning applications with R22. It offers high efficiency at +5 °C evaporating temperature. With a sound pressure level of 54 dB, it operates at a low noise level.

With a gross weight of 29 kg and a net weight of 25 kg, this compressor has a compact design suitable for various installation needs. The oil charge is 1.12 liters of POE oil.

Part of Copeland's ZR series, the ZR28K3E-TFD-522 offers low sound levels, superior efficiency and reliability. Preferred in commercial and industrial applications, this compressor is an excellent choice for air conditioning systems and comfort cooling applications.

Features

• Design: Welded hermetic scroll design provides durability and superior performance in high temperature conditions.
• Efficiency: Offers high efficiency in air conditioning, comfort and process cooling applications.
• Sound Levels: Low sound levels provide a quieter operating environment.
