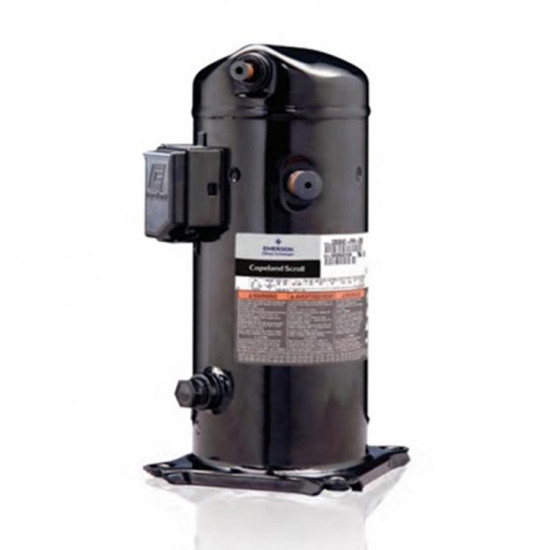

Copeland ZB15KQE-TFD-559 Scroll Compressor – 2 HP / 15,000 BTU, R404A (with Rotalock Valves)

Copeland ZB15KQE-TFD-559 is a refrigeration-type ZB series hermetic scroll compressor from Emerson Copeland. In the 2 HP power class, it is designed for cold rooms, supermarket display cabinets, blast freezer rooms and commercial refrigeration applications with R404A refrigerant. It is supplied with Rotalock valves: since the suction and discharge valves come fitted on the compressor, on-site replacement is done quickly without brazing, by isolating the refrigerant at the valves.

ZB Series Scroll: The Standard in Commercial Refrigeration

• Scroll advantage: Far fewer moving parts than a reciprocating compressor — low vibration, quiet operation, high volumetric efficiency and long service life.
• 5.90 m³/h displacement (50 Hz) — 15,000 BTU nominal capacity class (encoded in the Copeland model code).
• Rotalock valve connection: 1 1/4" suction / 1" discharge — installation and removal without brazing, service-friendly.
• 380-420 V three-phase (TFD): The standard supply of commercial refrigeration control panels.
• Comes charged with POE oil; compatible with R404A/HFC refrigerants.

Technical Specifications and Installation Notes

• Model: Copeland ZB15KQE-TFD-559  |  Series: ZB (refrigeration-type scroll)
• Power: 2 HP  |  Capacity Class: 15,000 BTU
• Refrigerant: R404A
• Displacement: 5.90 m³/h (50 Hz)
• Power Supply: 380-420 V ~ 50 Hz, three-phase
• Connection: With Rotalock valves — suction 1 1/4" / discharge 1"
• Body Dimensions: 242 × 242 mm (L×W)  |  Net Weight: 23 kg

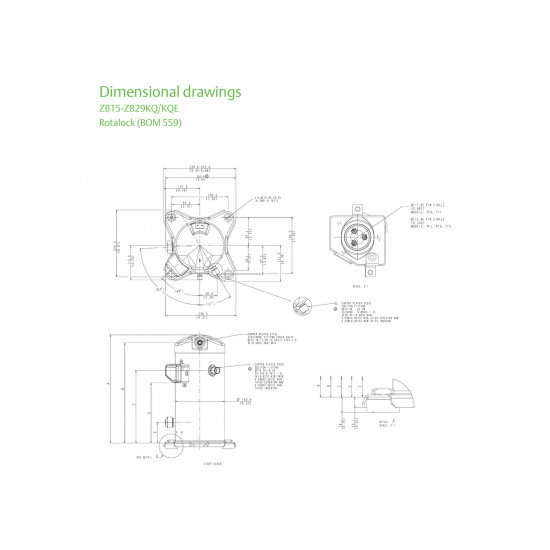

• Mounting: 190.5 × 190.5 mm mounting hole spacing (4 × Ø19 mm) — dimensioned technical drawing in the 2nd image
• Oil: POE (ester), 1.30 L factory charge

• 🔧 Check the phase sequence. A scroll compressor compresses in one direction only; in reverse rotation the pressure does not build up and noise increases — swap two phases and try again.
• Tighten the Rotalock nuts with new seals and to the specified torque; installing with old seals is the most common cause of leaks.
• POE oil absorbs moisture: Open the compressor immediately before installation, do not leave the system open to the atmosphere for long, and pull a deep vacuum before charging.
• Use a crankcase heater at low ambient temperatures — liquid refrigerant mixing with the oil at a cold start damages the bearings.
