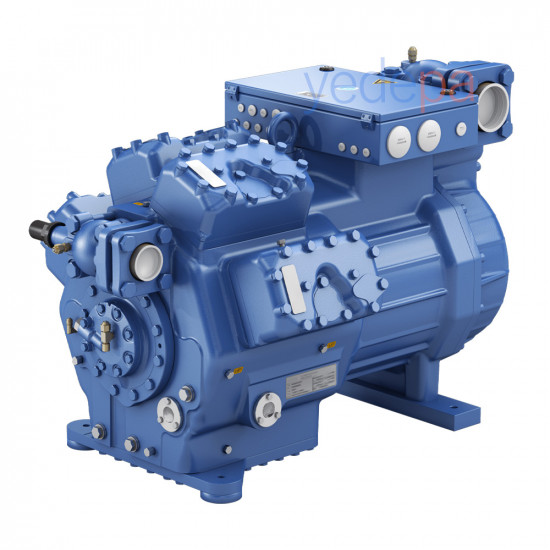

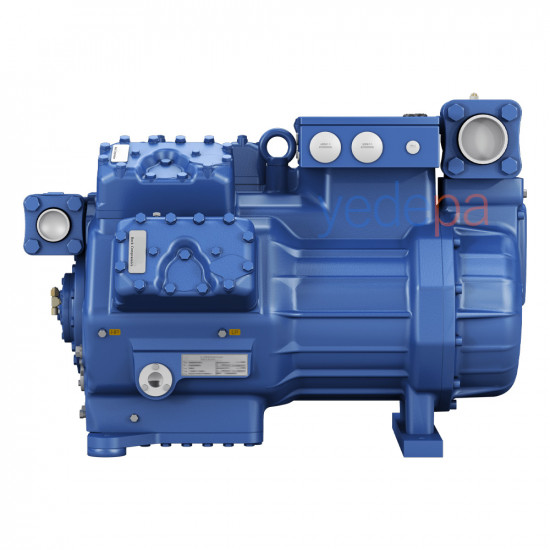

BOCK HGX88e/2400-4 S is a high-capacity 8-cylinder semi-hermetic reciprocating compressor designed for large-scale refrigeration systems. Its suction gas cooled motor design ensures long-lasting and efficient operation. With a volume of 657.8 liters and a 380–420V Y/YY, 50 Hz three-phase supply, it can be used reliably in commercial and industrial applications. With broad refrigerant compatibility and IP65 protection, it withstands harsh environmental conditions.
| Product Code | 097C1878 |
| Type Designation | HGX88e/2400-4 S |
| EAN | 5715162618134 |
| Gross Weight | 531.51 kg |
| Net Weight | 472.61 kg |
| Volume | 657.816 liters |
| Refrigerants | R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R134a, R513A |
| Suction Connection | 3 1/8 inch (76 mm) - Brazed |
| Discharge Connection | 2 1/8 inch (54 mm) - Brazed |
| Max. Pressure (PS) - High Side | 28 bar |
| Max. Pressure (PS) - Low Side | 19 bar |
| SCIP File No | 0fdfe737-aea1-4a9b-804b-179ec3f9ab54 |
| Series | HG(X)88/….series |
This product is compatible with the brands and models below. To avoid ordering the wrong part, verify the brand/model of your appliance; if you are not sure, ask for confirmation using the product/part code.
| Brand | Compatible Model / Series |
|---|---|
| BOCK | HGX88e/2400-4 S |
| Yedepa Product Code | 097C1878 |
| Operating Voltage | 380–420V Y/YY, 3 Phase, 50 Hz |
| Protection Class | IP65 |
| Suction Connection | 3 1/8 inch (76 mm) - Brazed |
| Max. Pressure (High Side) | 28 bar |
BOCK HGX88e/2400-4 S is a high-capacity, 8-cylinder semi-hermetic reciprocating compressor designed for large-scale refrigeration systems. It is used in large-scale food processing plants, cold storage facilities, logistics centers and hypermarket refrigeration systems.
It is compatible with R404A, R407A, R407C, R407F, R448A, R449A, R450A, R452A, R134a and R513A refrigerants. The compressor runs on BOCKlub E55 oil.
It runs on a 380–420V Y/YY, 3 phase, 50 Hz three-phase supply and has IP65 protection. It has an INT69 G motor protection module, a 220–240V AC crankcase heater and anti-vibration mounts.
The suction connection is 3 1/8 inch (76 mm) and the discharge connection is 2 1/8 inch (54 mm); both are brazed type. The maximum pressure is 28 bar on the high side and 19 bar on the low side.
