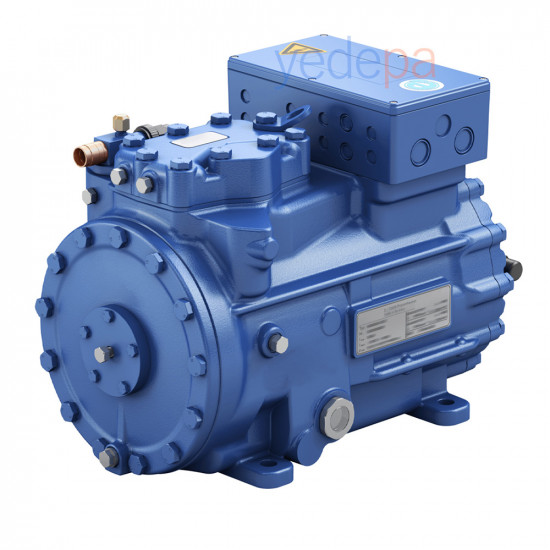

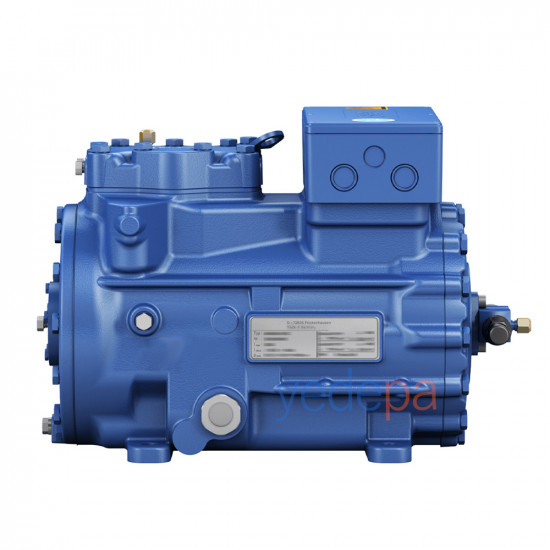

The BOCK HGX22e/160-4 S is a semi-hermetic reciprocating compressor with a suction gas-cooled motor and high cooling capacity. This 2-cylinder model delivers reliable, energy-efficient performance in the medium and high back pressure ranges (MBP/HBP) in commercial and industrial applications. With INT69 G motor protection, IP66 protection against external factors and multi-refrigerant compatibility, it provides both system flexibility and ease of service.
| Product Code | 097C2805 |
| Model Number | HGX22e/160-4 S |
| Product Group | Semi-Hermetic Compressors |
| Refrigerants | R404A, R407C, R407A, R452A, R134a, R407F, R513A, R448A, R450A, R449A |
| Suction Connection | 7/8 inch (22 mm) |
| Discharge Connection | 5/8 inch (16 mm) |
| Max. High Pressure (PS) | 28 bar |
| Max. Low Pressure (PS) | 19 bar |
| Gross Weight | 87.416 kg |
| Net Weight | 78.016 kg |
| Hacim | 152.46 litre |
| EAN | 5715162643600 |
| IP Class | IP66 |
| Frekans | 50 Hz |
| Faz | 3 Faz |
| REACH Bilgisi | Contains lead (CAS No. 7439-92-1) |
This product is compatible with the brands and models below. To avoid ordering the wrong part, verify the brand/model of your appliance; if you are not sure, ask for confirmation using the product/part code.
| Brand | Compatible Model / Series |
|---|---|
| BOCK | HGX22e/160-4 S |
| Yedepa Product Code | 097C2805 |
| Suction Connection | 7/8 inch (22 mm) |
| Discharge Connection | 5/8 inch (16 mm) |
| Max. High Pressure | 28 bar |
| Protection Class | IP66 |
It is a 2-cylinder semi-hermetic reciprocating compressor with a suction gas-cooled motor and high cooling capacity. It is used in medium and high back pressure (MBP/HBP) commercial applications such as market and supermarket refrigeration and industrial storage.
It is compatible with R404A, R407C, R407A, R452A, R134a, R407F, R513A, R448A, R450A and R449A refrigerants. Multi-refrigerant support provides system flexibility.
The suction connection is 7/8 inch (22 mm) and the discharge connection is 5/8 inch (16 mm). Maximum high pressure is 28 bar and maximum low pressure is 19 bar.
It has INT69 G motor protection (115-230V AC, 50/60 Hz) and IP66 protection against external factors. It also uses BOCKlub E55 oil and comes with a 110-240V AC crankcase heater and anti-vibration mounts.
