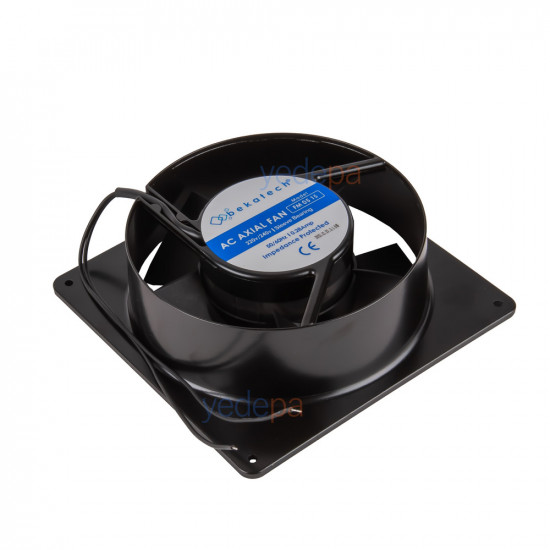

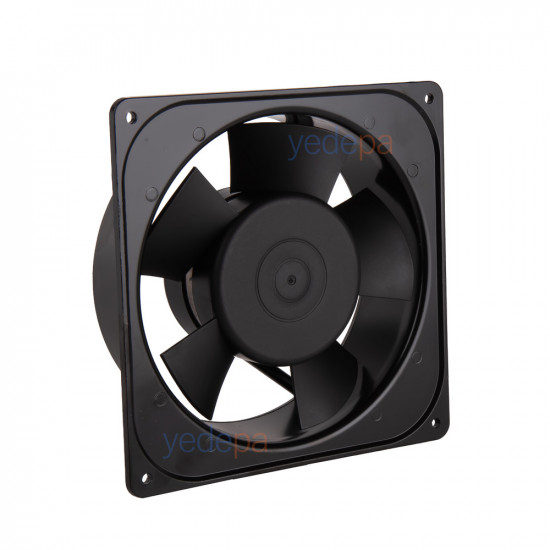

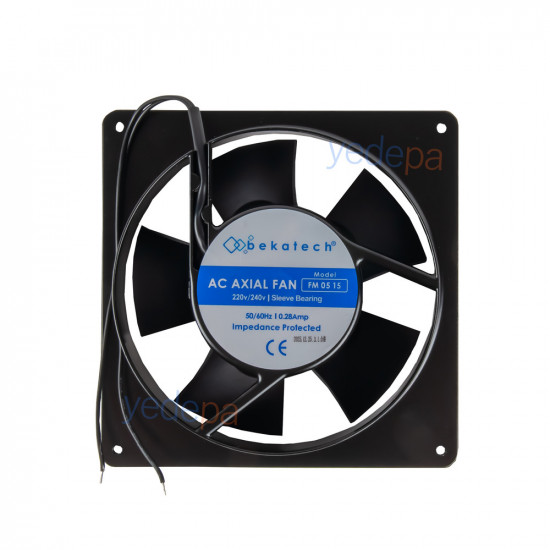

Bekatech FM0515 Cooling Square Fan Motor 170x170x51mm

Bekatech FM 05 15 is a square type AC axial fan motor measuring 170 × 170 × 51 mm, used for cooling refrigerated cabinets, control panels and machinery. With its metal body and impedance-protected winding, it is suitable for continuous operation.

Product Features

• Brand / Model: Bekatech · FM 05 15 (FM0515)
• Type: AC axial fan, square frame
• Size: 170 × 170 × 51 mm
• Supply: AC 220 – 240 V
• Frequency: 50 / 60 Hz
• Current: 0.28 A
• Bearing type: sleeve bearing
• Protection: impedance-protected winding
• Speed: 2400 rpm ±10%
• Operating temperature: −10 … +65 °C
• Body: metal · Certification: CE

What Does Impedance-Protected Winding Mean?

In impedance-protected motors, the winding is designed so that it will not burn out thanks to its own resistance, even if the rotor locks. If the fan blade is stopped by a foreign object or by icing, the motor does not draw excess current and burn the winding. No separate thermal protection element is required — this is the feature sought in continuously running applications such as refrigerated cabinets.

A sleeve bearing runs more quietly than a ball bearing and is lower in cost. Running the fan with a horizontal shaft (in the upright position) extends bearing life.

Applications

• Condenser fan for refrigerated cabinets and display cases
• Ventilation of electrical panels and control cabinets
• Machine and power supply cooling
• Air circulation inside ovens, cabinets and enclosures

• 🔧 Mounting direction: The arrow on the body indicates the airflow direction and the blade rotation direction. Orient it according to whether it will draw in or blow out air.
• 🔧 Connection: Connects to the 220 V mains with a two-wire cable; does not require a separate capacitor.
• Blade cleaning: Dust accumulating on the blades causes imbalance, increasing vibration and bearing noise. Clean the blades regularly.
• Size check: In square fans, the screw hole spacing is also important — before ordering, verify the 170 × 170 mm frame size and 51 mm thickness of your existing fan.
