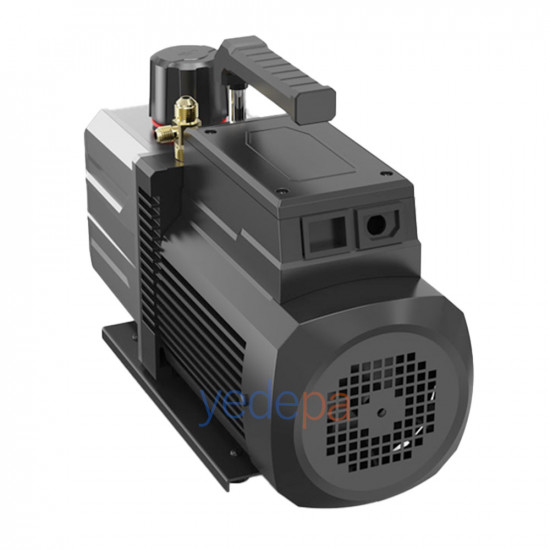

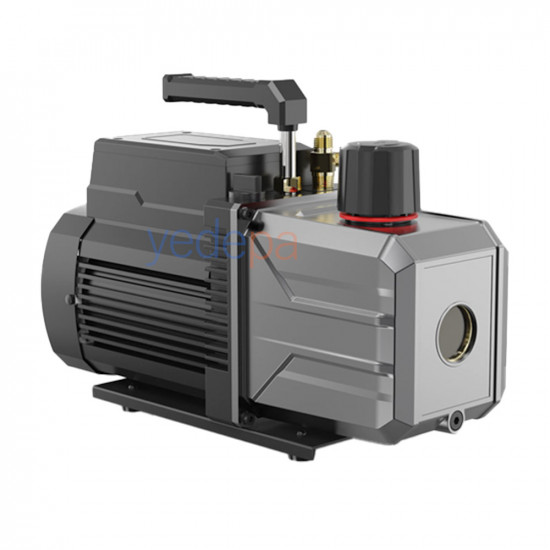

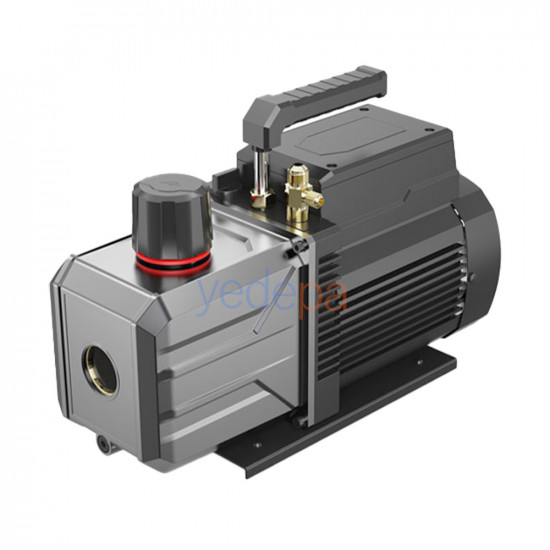

Artiko VB130 Single-Stage Vacuum Pump (New Series) - 220V, 85/100 L/min (3/3.6 CFM), 150 Micron, 1/4 HP

Artiko VB130 is a single-stage rotary vane vacuum pump from Artiko's new series (VB). It is used to remove air and moisture from the line before refrigerant charging in split air conditioners and refrigeration systems; with a flow rate of 85/100 L/min (3/3.6 CFM), it is the standard service pump for residential and small commercial systems.

New Series VB Body: What Has Changed, Where It Is Used

• Compact new body: 281×123×230 mm, 5.8 kg — easy to carry for ladder/roof work.
• Dual-frequency motor: 220V~50Hz / 110V~60Hz — 85 L/min at 50 Hz, 100 L/min at 60 Hz.
• Compatible refrigerants: CFC/HCFC/HFC group including R12, R22, R134a (according to the manual, the R32 version of the series must be used for R32/R1234yf).
• Applications: Mainly AC/refrigeration service, as well as jobs requiring vacuum such as printing machines, food processing, gas analysis and thermoplastic molding.

Technical Specifications and Usage Notes

• Product Code: 01 57 37  |  Model: Artiko VB130 (new series)
• Type: Single-stage rotary vane
• Flow Rate: 85 L/min @50Hz · 100 L/min @60Hz (3/3.6 CFM)
• Ultimate Vacuum: 150 microns
• Motor: 1/4 HP, 220V~50Hz / 110V~60Hz
• Suction Connection: 1/4" flare
• Oil Capacity: 280 ml  |  oil sight glass + drain plug
• Size / Weight: 281×123×230 mm / 5.8 kg

• 🔧 Check the oil level every time you use it. The middle of the sight glass is the reference; low oil spoils the vacuum depth, excess oil is expelled from the exhaust.
• Change the oil after a wet system. Vacuum oil absorbs moisture; with oil that has turned milky you cannot reach 150 microns.
• Verify the vacuum with a manifold/vacuum gauge and when the target is reached, first close the valve and then stop the pump — this prevents oil backflow.
