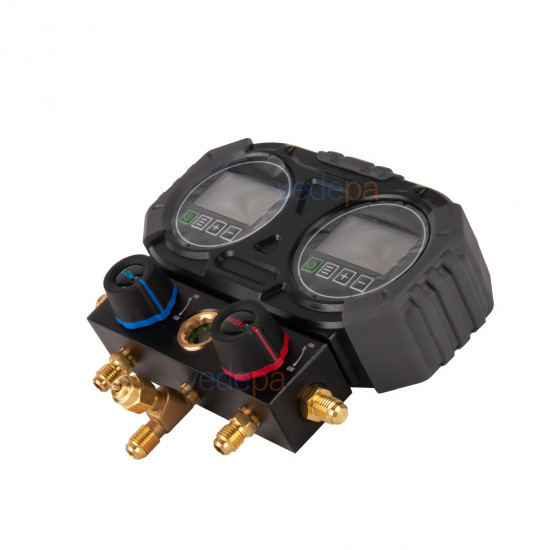

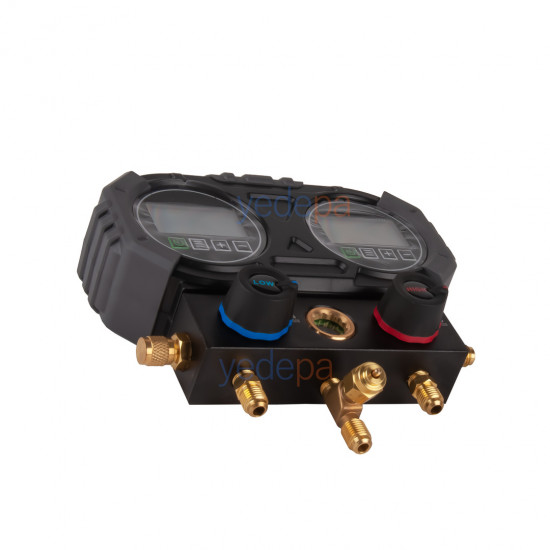

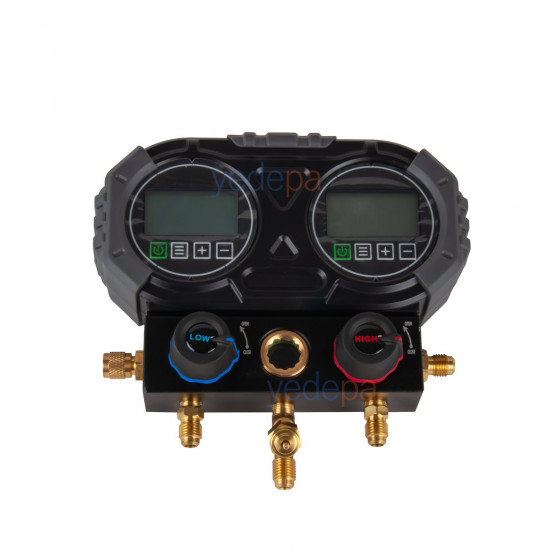

Artiko DMG-360 Digital Manifold Full Set – 19 Refrigerants, Dual Sensor, with Case

Artiko DMG-360 is a digital manifold set with dual pressure sensors. It shows low and high pressure simultaneously on two separate LCD displays; when you select the refrigerant you are working with from the 19 refrigerants in its memory, it calculates the saturation temperature accordingly. It comes as a complete set with charging hoses, quick coupler adapters and a carrying case — take it out of the box and start work.

19-Refrigerant Memory and Dual Pressure Sensors

• Where analog gauges fall short: No more turning refrigerant slide charts or reading P-T tables; you select the refrigerant and the device does the reading. 0.01 bar resolution and ±0.2 bar accuracy are much clearer than reading a needle.
• 19 refrigerant support: R134A, R1234yf, R22, R290, R32, R404A, R407C, R410A, R452b, R454b, R502, R507, R600, R600A, R12, R125, R141b, R401A, R401b — including new-generation low-GWP refrigerants (R32, R1234yf, R454b, R452b).
• Vacuum from the same device: Reads vacuum down to -29 inHg; you monitor system evacuation without changing the manifold.
• 5 pressure units: bar · psi · kPa · MPa · kgf/cm²  |  temperature °C/°F.
• Independent in the field: 60 hours of operation on 2 × 9V batteries; backlit display, 30-minute auto power-off.

Technical Specifications, Set Contents and Usage Notes

• Product Code: 01 19 67  |  Model: Artiko DMG-360
• Sensor: 2 built-in pressure sensors  |  Refresh Rate: 1 second
• Pressure Range: 0-60 bar (0-870 psi · 0-6,000 kPa · 0-6 MPa · 0-61 kgf/cm²)
• Vacuum Range: -29 ~ 0 inHg  |  Max. Overload: 75 bar
• Resolution: 0.01 bar · 0.1 psi · 1 kPa · 0.001 MPa · 1 inHg
• Accuracy (22 °C): ±0.2 bar (±2 psi · ±20 kPa)  |  ±1 inHg in vacuum
• Connection: 1/4" SAE  |  Operating Humidity: 10-90% RH
• Operating Temperature: -10 ~ +50 °C  |  Storage: -20 ~ +60 °C
• Power: 2 × 9V dry batteries — 60 hours  |  Display: Backlit LCD (1 min), 30 min auto power-off

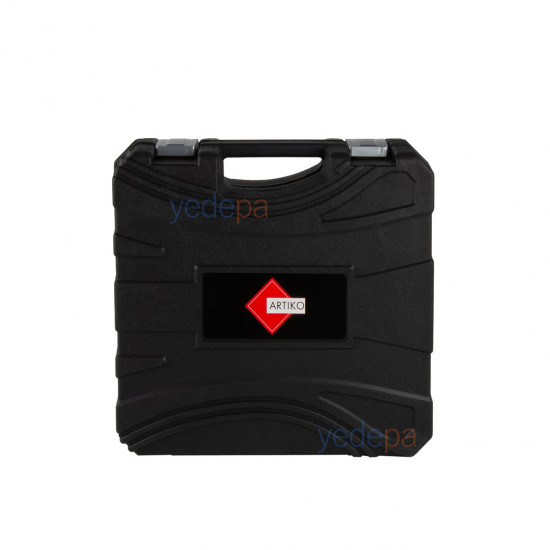

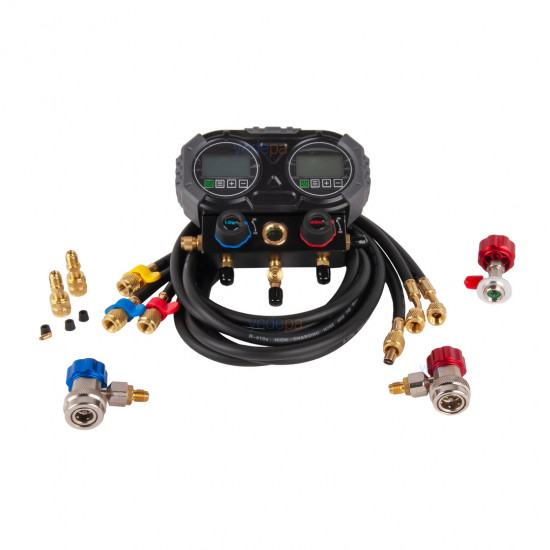

• Set Contents: DMG-360 manifold + charging hoses + quick coupler adapters + carrying case + user manual

• 🔧 Not for use with ammonia (R-717). The manufacturer explicitly excludes ammonia and ammonia-containing refrigerants; the sensor will be damaged.
• Do not leave it on a line above 75 bar: The measuring limit is 60 bar and the overload limit is 75 bar — disconnect the device from the line during pressure testing.
• Select the refrigerant correctly: Saturation temperature and superheat/subcooling calculations are based on the selected refrigerant; selecting the wrong refrigerant does not spoil the measurement but the interpretation.
• Remove the batteries if it will not be used for a long time — a leaking battery damages the electronic board. The 30-minute auto power-off preserves battery life.
